MSI GeForce RTX 3080 Ti Suprim X review: Big performance. Even bigger price.

Note: This review was first published on 4 August 2021.

Exceptional performance and a price to match

The MSI GeForce RTX 3080 Ti Suprim X is the company's top-of-the-line GeForce RTX 3080 Ti. Every aspect of it oozes extravagance, down to the price. If the S$2,799 price tag of the ASUS ROG Strix GeForce RTX 3080 Ti was sky high, the MSI GeForce RTX 3080 Ti knocks it absolutely out of this world. At S$3,288, the MSI card is incredibly expensive, almost ridiculously so. The question now is – is it worth it?

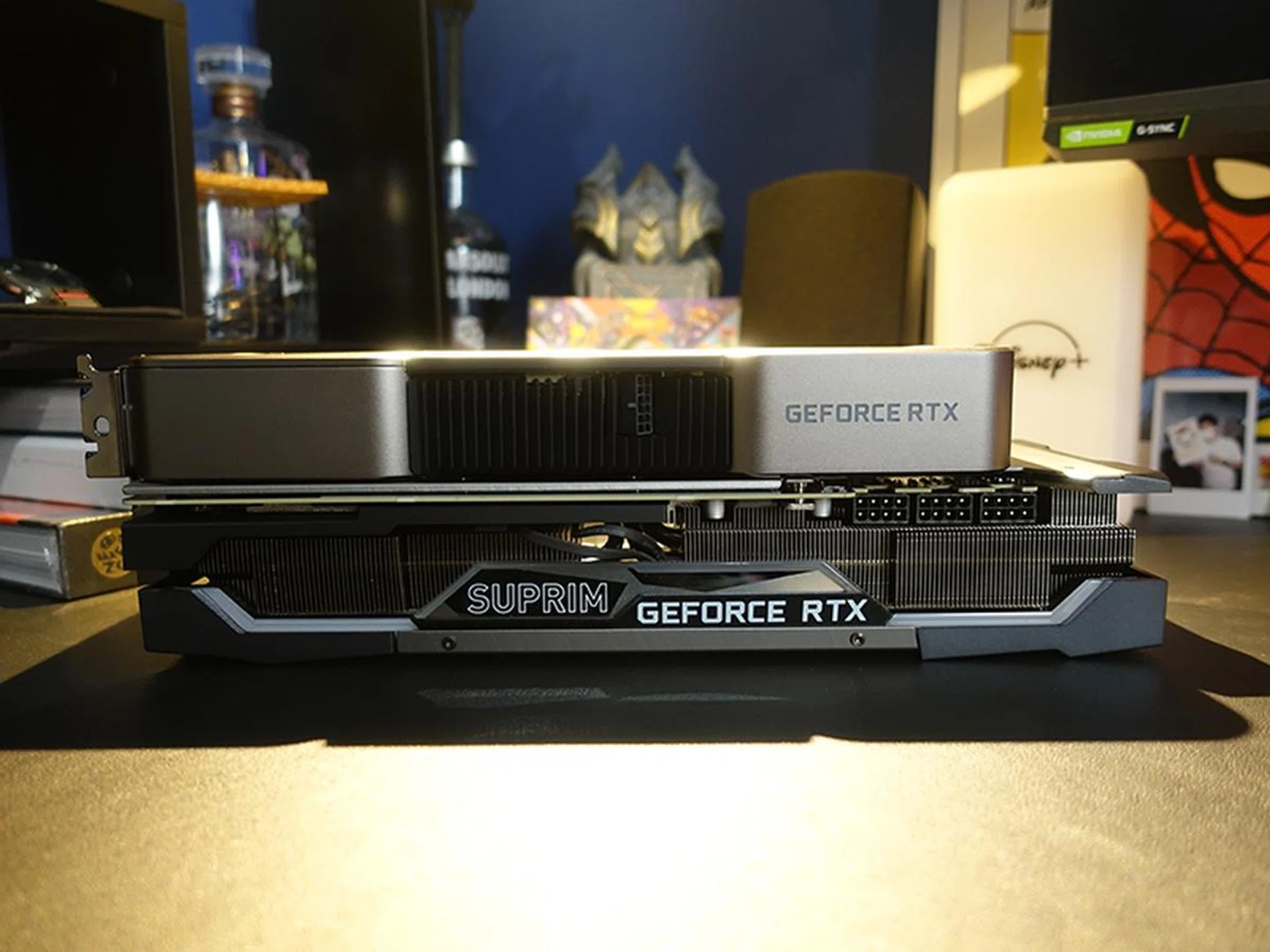

For starters, the card spans some gargantuan proportions, measuring a good 336mm long and 140mm across. It'll take up the full three slots in your chassis, so you should really check beforehand if you have space for it. At just under 2kg, it's super heavy as well, so a certain amount of sag is to be expected. Fortunately, MSI has included an adjustable GPU bracket to take some of the strain off your PCIe slot. A metal bracket helps reinforce the card and protect the PCB from flexing, but the included GPU bracket should really come in handy and give you a peace of mind.

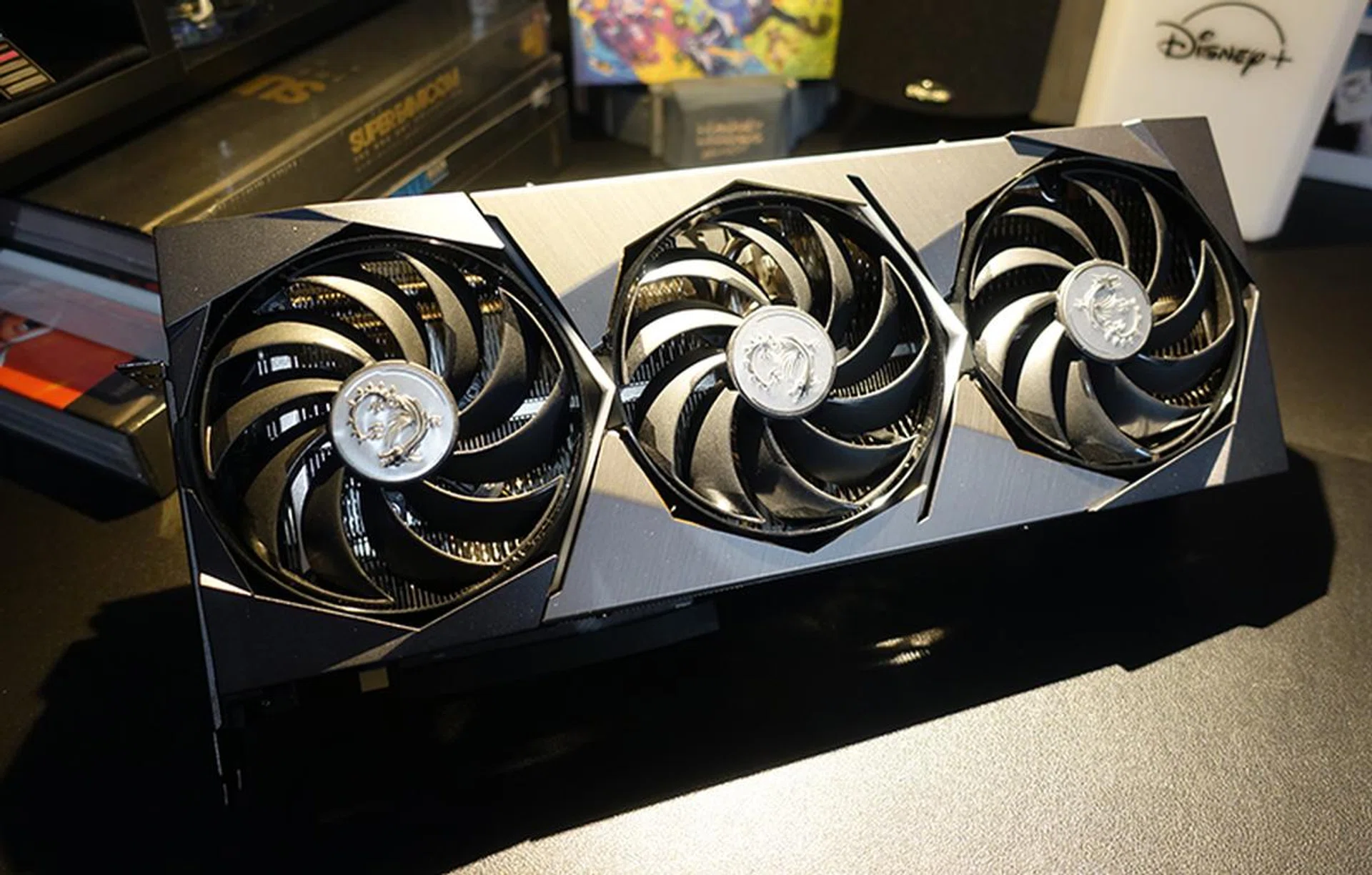

The premium construction of the card shows itself in the brushed aluminium shroud, which confers a really solid feel. The TriFrozr 2S cooler keeps things chilly, featuring three Torx 4.0 fans. Each double-ball bearing fan has a unique design, where individual pairs of blades are linked with a ring of sorts. This is supposed to help focus airflow toward the heatsink and increase static pressure. This cooling system itself is identical to what was featured in the earlier RTX 3080 Gaming X Trio, but the new brushed metal shroud is the visual highlight that elevates the graphics card to another level.

Elsewhere, MSI has taken care to give the memory modules their own heatsink and heat pipe to help whisk heat away. This is a nice touch as they're sometimes neglected, even on custom cards. To keep the GPU die cool, MSI has gone with a nickel-plated copper base plate and an array of seven heat pipes to channel heat to the sprawling heatsink. The heat pipes run the full length of the heatsink for more efficient heat dissipation, and they've also been machined flat to maximize the surface area that comes in contact with the copper base plate. Well-placed thermal pads provide additional heat dissipation for other components on the PCB.

When it comes to the heatsink itself, MSI's attention to detail really shows. The fin edges have been shaped like waves, which supposedly disrupt unwanted airflow noise for quieter operation. Disruptors also provide additional surface area and guide air to where it's needed for better cooling. Finally, the fans themselves will stop spinning when the GPU isn't working hard, further reducing noise when you're not actually gaming.

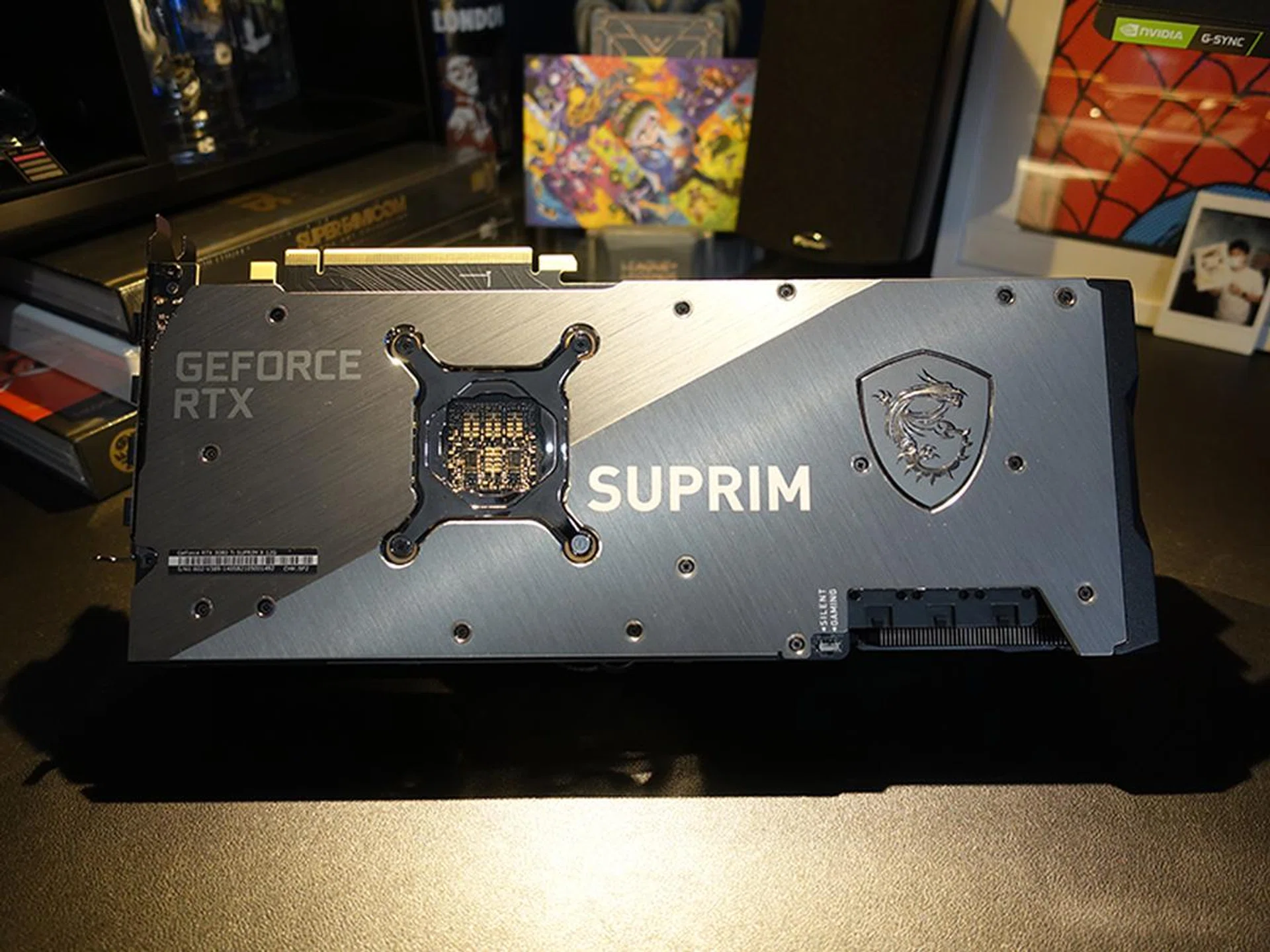

Flip the card over and you'll see the brushed metal backplate, with the MSI dragon logo inlaid on the right. It's a really luxe look that I love, and everything about the card screams quality. The backplate itself even doubles as a passive heatsink, with still more thermal pads located beneath for improved cooling.

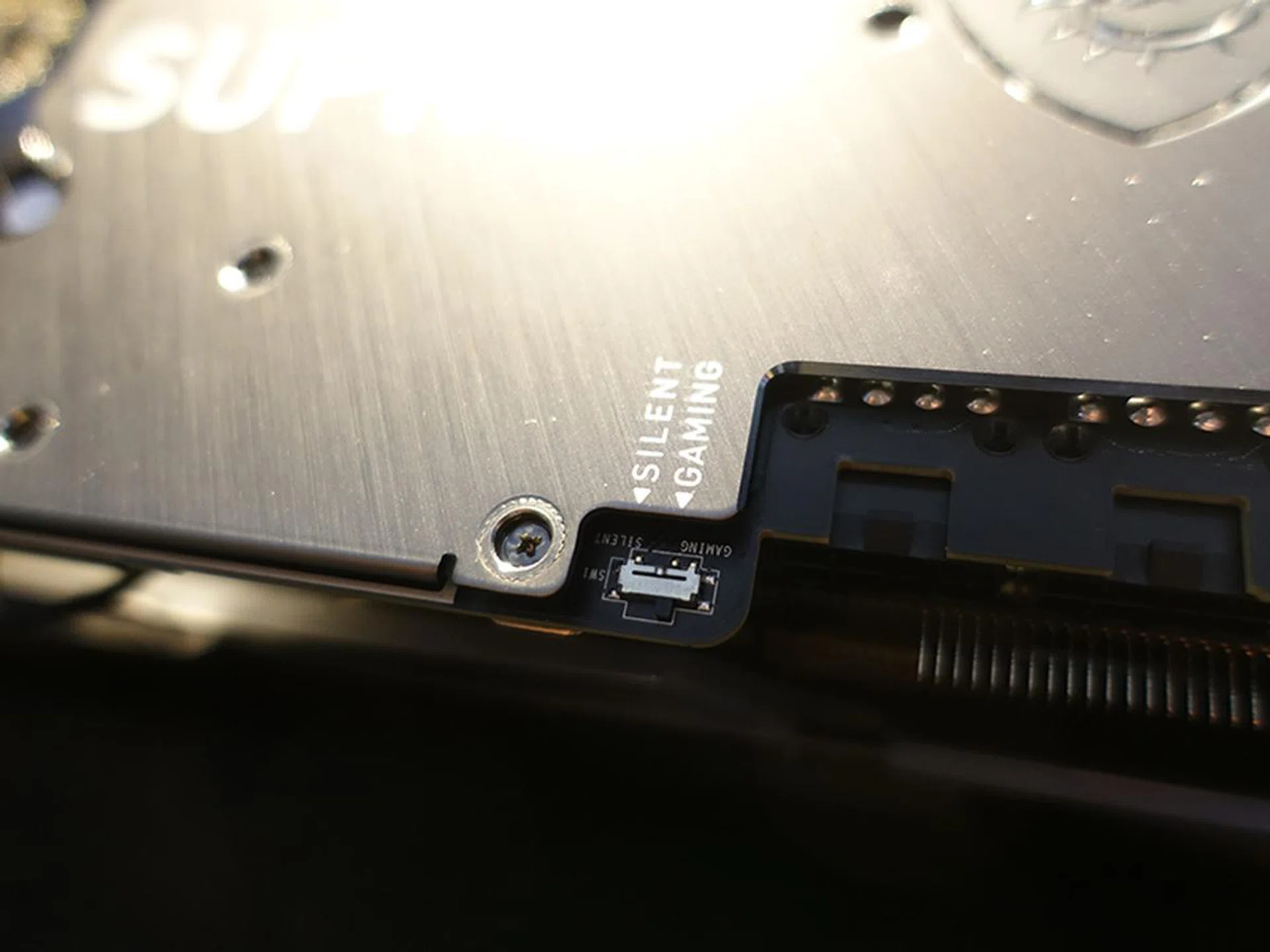

At the edge of the card, you'll notice a dedicated BIOS switch that lets you switch between Gaming and Silent modes without the need for any software. The PCB itself has gotten some special treatment too, with a thickened copper layer for increased conductivity for better heat dissipation and reliability, according to MSI. Additional fuses were also built into the PCB for stronger safeguards against electrical damage.

The card requires three 8-pin connectors for power, making for one extra cable to wrangle with. MSI also recommends having at least an 850W power supply to work with, a rather high bar to clear if you're not already running a high-end system.

Test setup

Here are the specifications of our test rig:

• AMD Ryzen 9 5900X CPU
• MSI MEG X570 Godlike
• Samsung 980 Pro 1TB SSD
• Windows 10 Home 64-bit
• ASUS ROG Swift PG43UQ 4K Gaming Monitor

We'll be comparing the MSI GeForce RTX 3080 Ti Suprim X against the ASUS ROG Strix GeForce RTX 3080 Ti OC and their Founders Edition counterpart.

The following synthetic benchmarks and games were run, with the games chosen from a wide range of genres to give a better indication of performance across different segments:

• 3DMark
• Shadow of the Tomb Raider
• Total War: Three Kingdoms (Battle)
• Deus Ex: Mankind Divided
• Metro: Exodus
• Watch Dogs: Legion

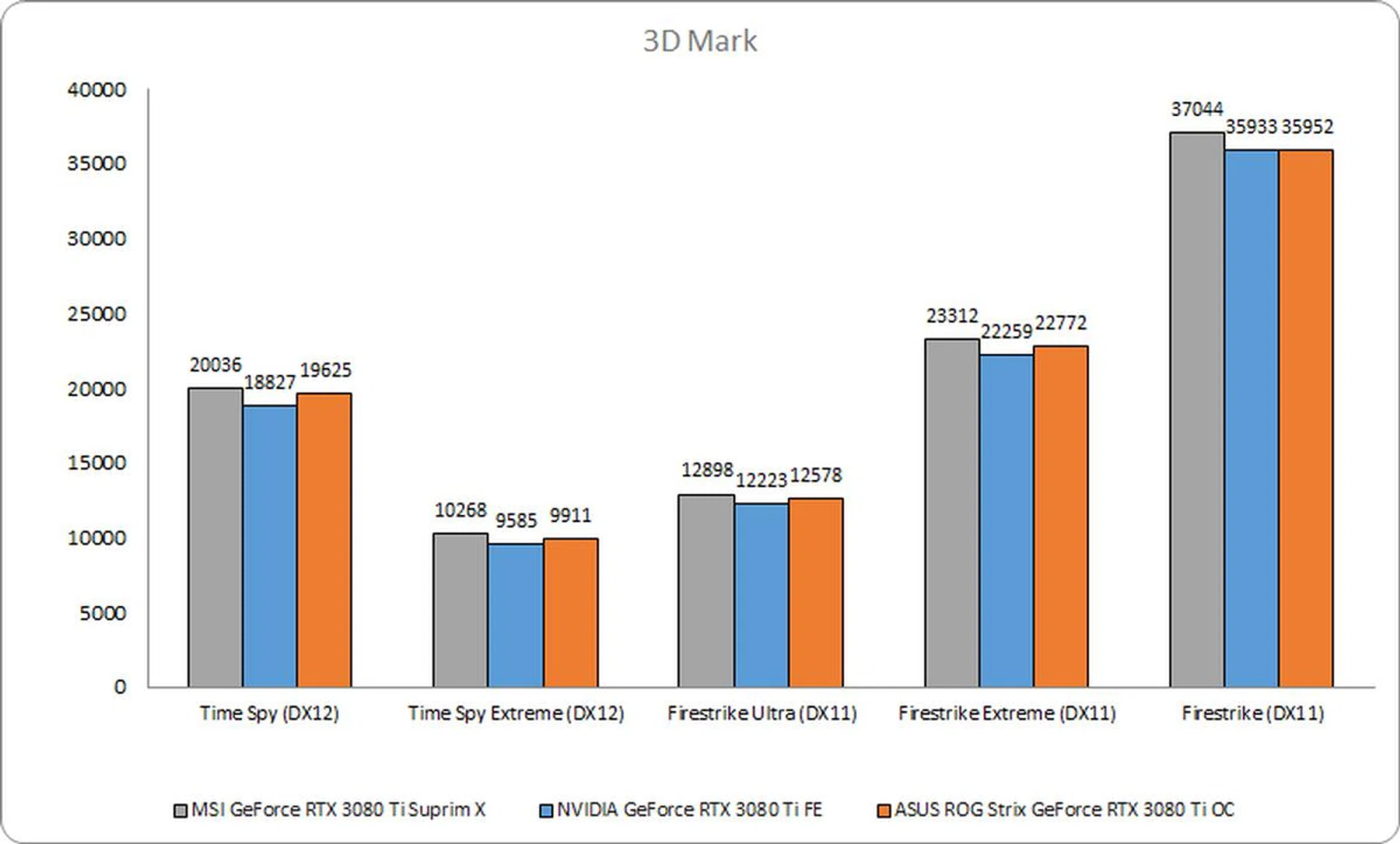

3DMark

3DMark is a synthetic benchmark that tests graphics and computational performance at different resolutions, starting at 1080p and going all the way up to 4K. A series of two graphics test, one physics test, and then a combined test stresses your hardware in turn to assess its performance.

The MSI GeForce RTX 3080 Ti has a marginally higher boost clock than the ASUS model, clocking in at 1,830MHz to the latter's 1,815MHz. In 3DMark, the MSI card took a narrow lead across the board, posting a 5% lead over the Founders Edition card in Fire Strike Ultra.

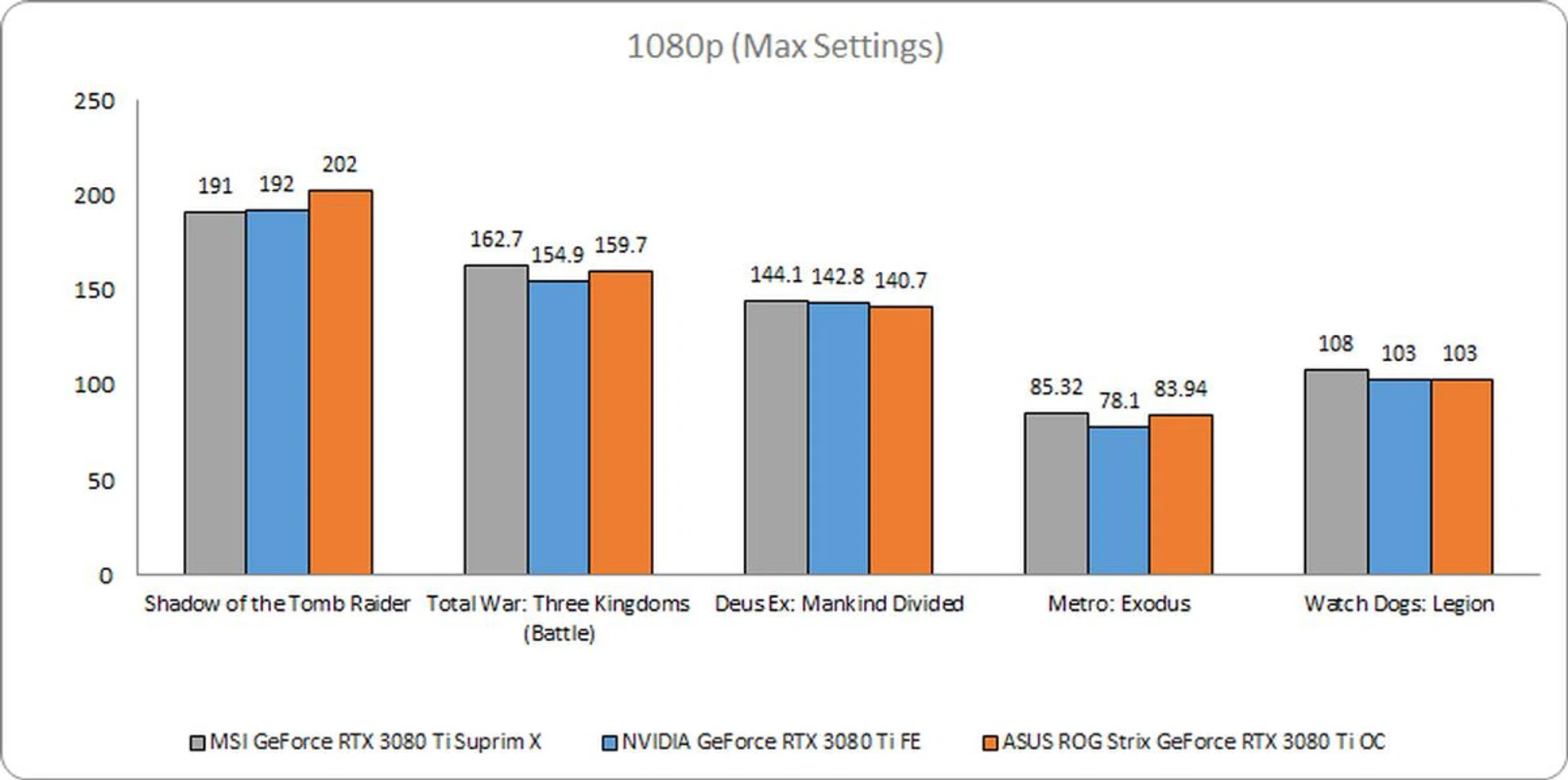

1080p Benchmarks (Max Settings)

The MSI GeForce RTX 3080 Ti Suprim X cuts through all the games we tested at 1080p like a hot knife through butter. As in 3DMark, the performance difference between it and the other two cards is negligible at best.

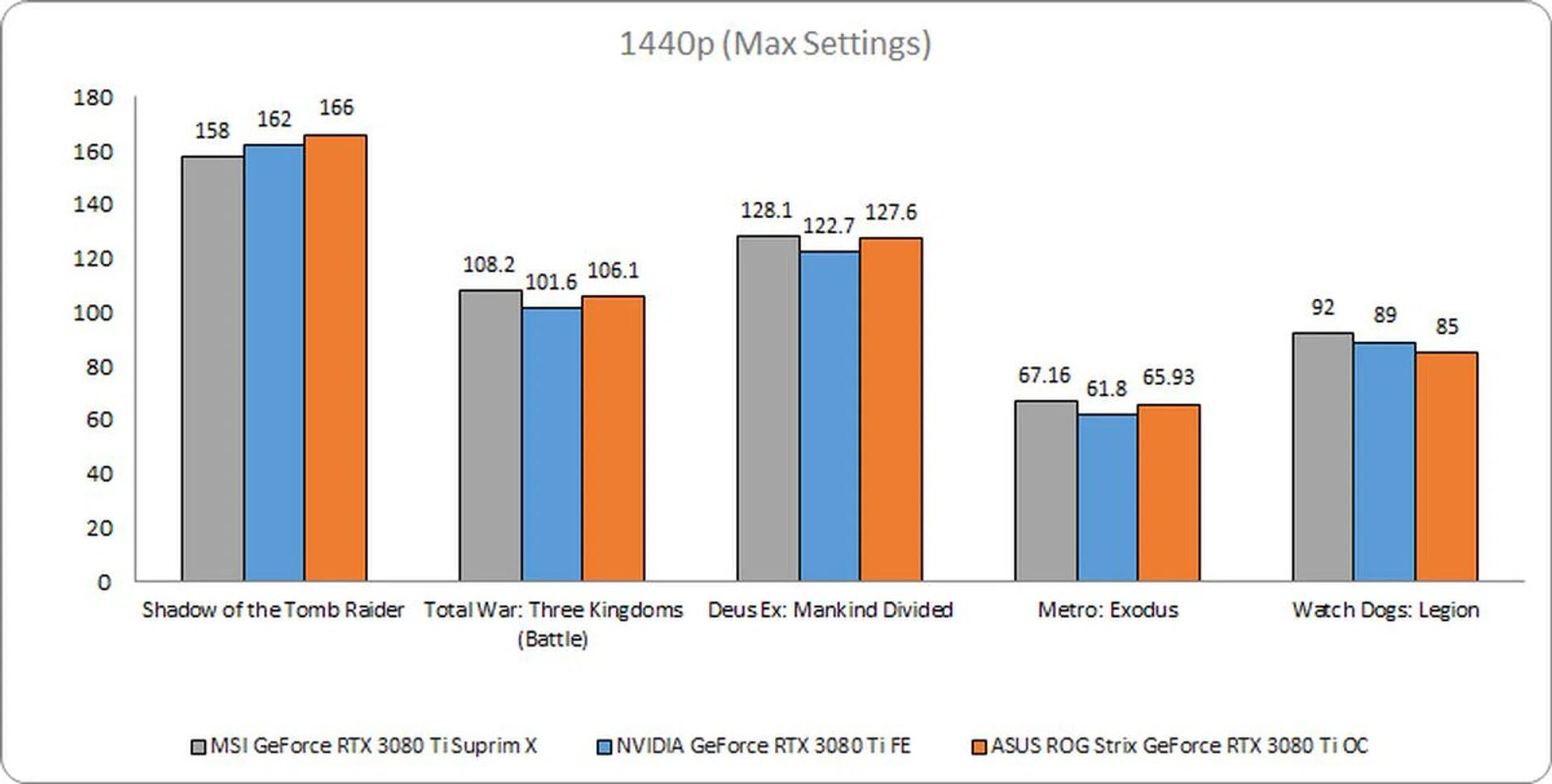

1440p Benchmarks (Max Settings)

The MSI card puts on a similarly strong showing at 1440p. It's ahead of the Founders Edition and ASUS cards in most of the games tested, a slim lead that's testament to the sheer performance it brings to the table.

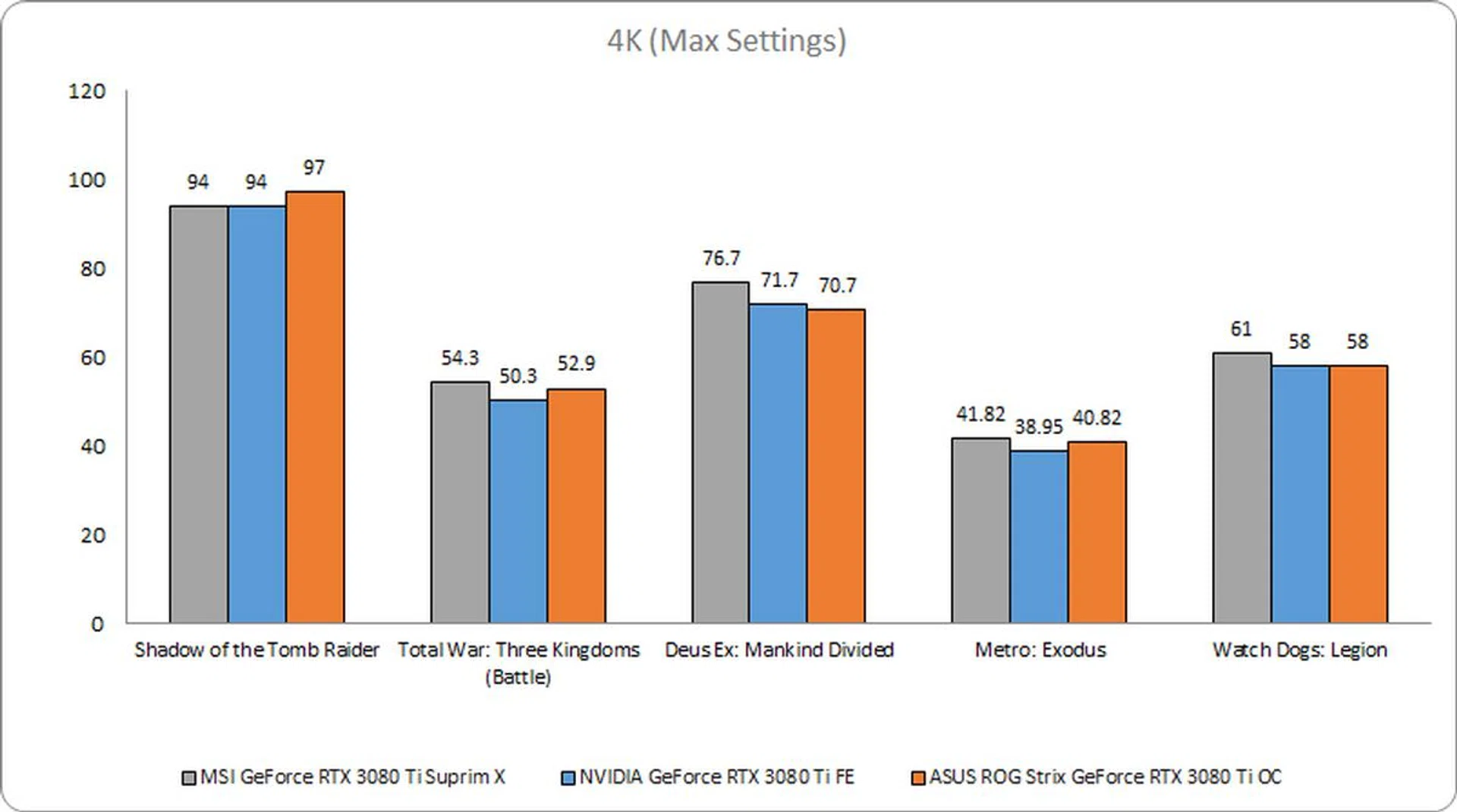

4K Benchmarks (Max Settings)

At 4K, the MSI card continues to flaunt its performance chops. Performance differentials with the other two cards rest on razor-thin margins. Metro: Exodus proves a bit more of a challenge than the other games tested, with performance dropping well below the vaunted 60fps.

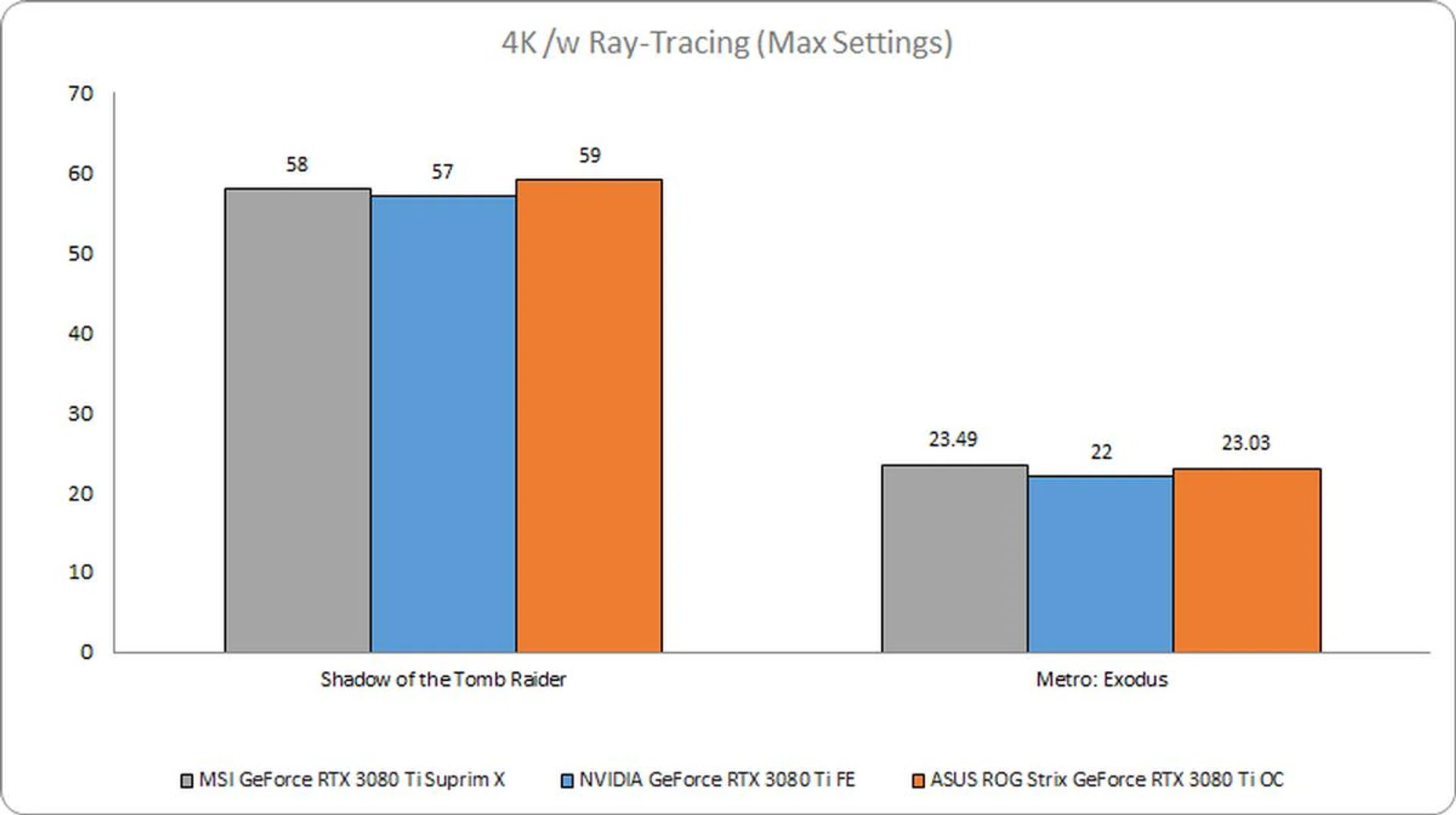

Ray Tracing Benchmarks (4K, Max Settings)

With ray tracing turned on, Metro: Exodus continues to challenge the cards thoroughly. Still, there are no noteworthy differences in performance among the three.

Temperature and power

When it comes to thermal performance, the MSI GeForce RTX 3080 Ti Suprim X shines. It's the coolest card of the lot, albeit by a small margin. The massive cooler is clearly putting in the work here and you'll need every bit of that surface area to keep the GA102 GPU cool. Once you factor in that the MSI card is also clocked higher than the cards compared against, the cooling performance showcased by MSI is quite impressive.

Conclusion

Testing the MSI GeForce RTX 3080 Ti Suprim X is kind of like dropping a few hundred bucks on a fancy meal at a posh restaurant. It is chock-full of delectable delights and masterfully executed, but you're not quite sure if it's 400 bucks worth of delicious. I feel the same about the MSI card. It  is super-fast, runs cool, and looks absolutely stunning. It's a winner in every sense of the word. But I'm still not sure if it's S$3,288 worth of amazing.

It's difficult to justify the price when the ASUS ROG Strix GeForce RTX 3080 Ti OC performs very similarly and costs nearly S$500 less. Get this only if you really want the cream of the crop, intend to game at 4K and have the cash to burn.
