Linksys EA8100 router review: Possibly the best ISP-bundled router right now

What’s the Linksys EA8100?

Linksys' EA8100 is a dual-band AC2600-class router that is exclusive to StarHub (world’s first for the telco, too). It is given free to customers who sign up for or renew their StarHub 1GBps fiber home broadband and HomeHub Plus plans. Its pièce de résistance is that it has DFS capability.

DFS? What is that?

DFS stands for Dynamic Frequency Selection and routers with DFS capability are able to use special 5GHz channels that are typically reserved for radar use by government services.

What’s so important about that?

To answer that you need to understand that one of the causes of poor Wi-Fi is channel congestion. This occurs when there are many Wi-Fi networks using the same channels. In Singapore, they are 25 channels in the 5GHz spectrum but only nine are available for public use. The remaining 16 are reserved for use by government services. Performance degrades when multiple networks are using the same channel and with just nine channels to go around, you can imagine how bad congestion can be. DFS combats this by tapping into the restricted 5GHz spectrum. In doing so, it is able to use channels that most other routers cannot use. This ability to use ‘clean’ Wi-Fi channels should, in theory, enable the Linksys EA8100 to achieve better Wi-Fi performance.

If DFS is so amazing why do so few routers support it?

Good question. I suspect that costs have a large role to play. You see, to support DFS, a router has to constantly scan its environment for signs of radar. When there is a radar in the vicinity, it has to vacate the DFS spectrum and use one of the publicly available Wi-Fi channels. To do this requires a special chipset and firmware, which obviously add costs to the router.

So what chipset is inside the EA8100?

Linksys hasn’t disclosed it but based on specifications that we do know, there is a good chance it is using the MediaTek MT7621 chipset. This has an 880MHz dual-core processor with 128MB of flash and 256MB of RAM.

That sounds promising, so what kind of performance should I expect?

The EA8100 is a dual-band router that has an AC2600-class speed rating. This means it can deliver speeds of up to 800Mbps on its 2.4GHz network and 1,733Mbps on its 5GHz network. This is all theoretical, of course.

Right, let's talk about design. It looks kind of boring doesn't it?

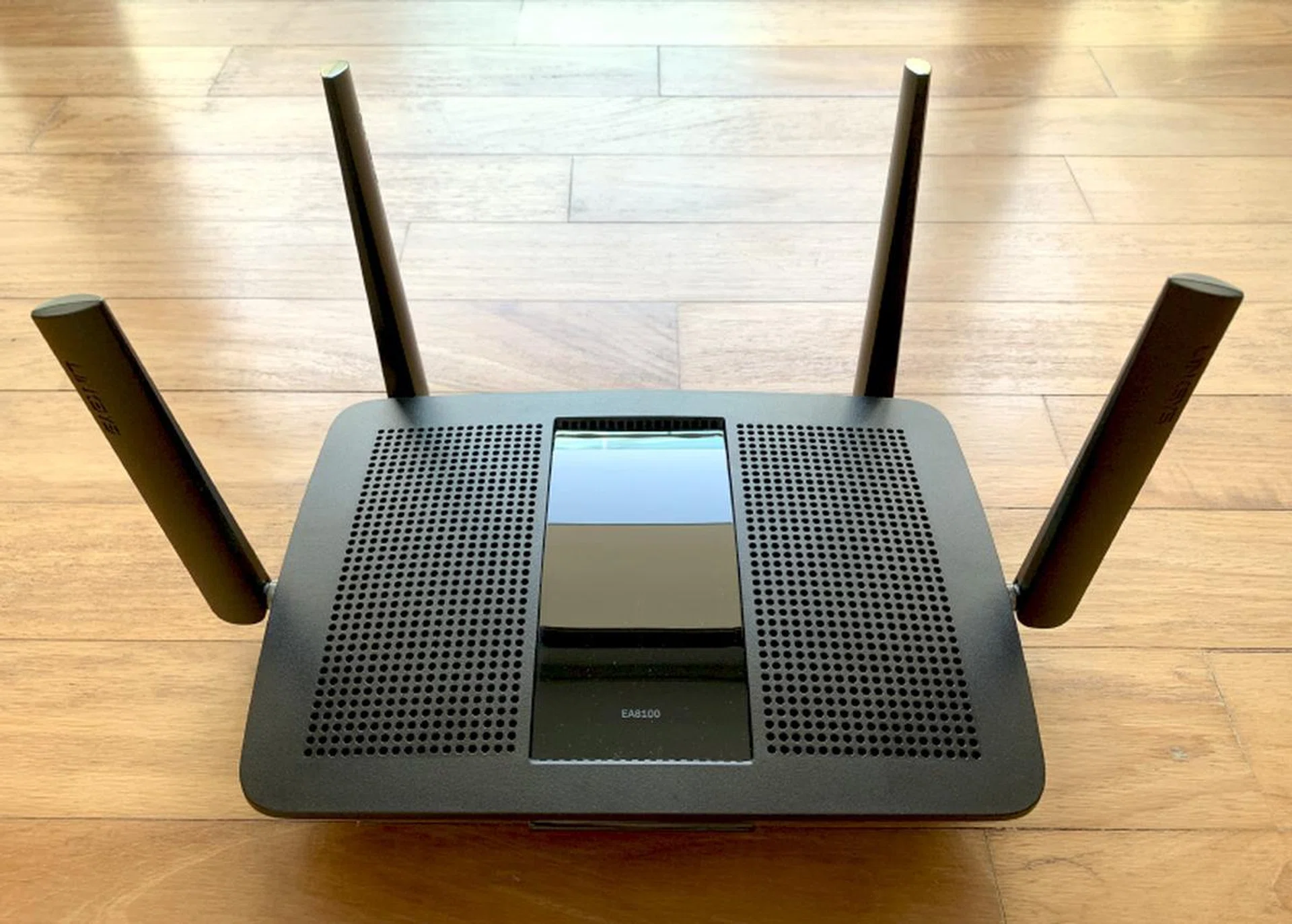

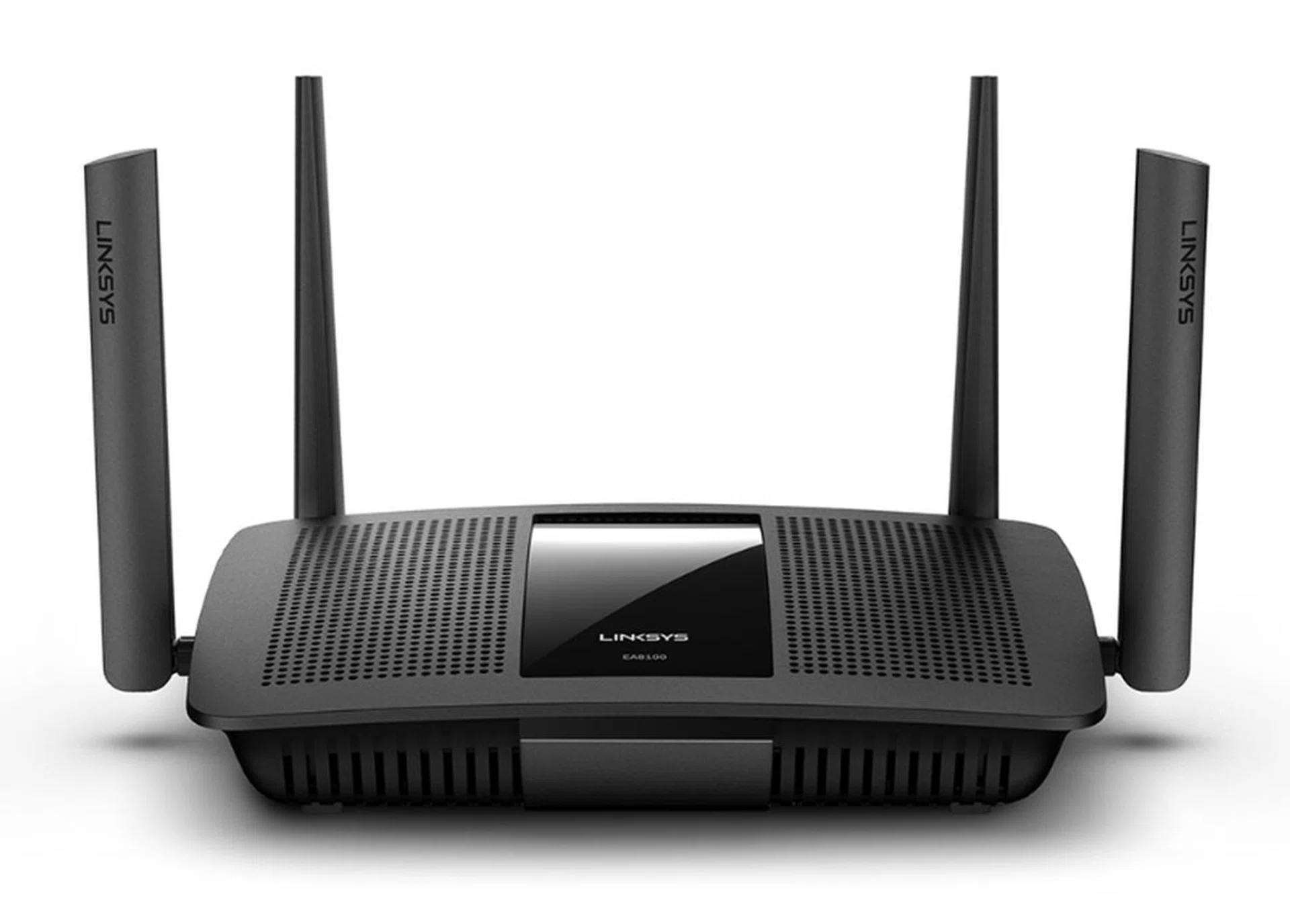

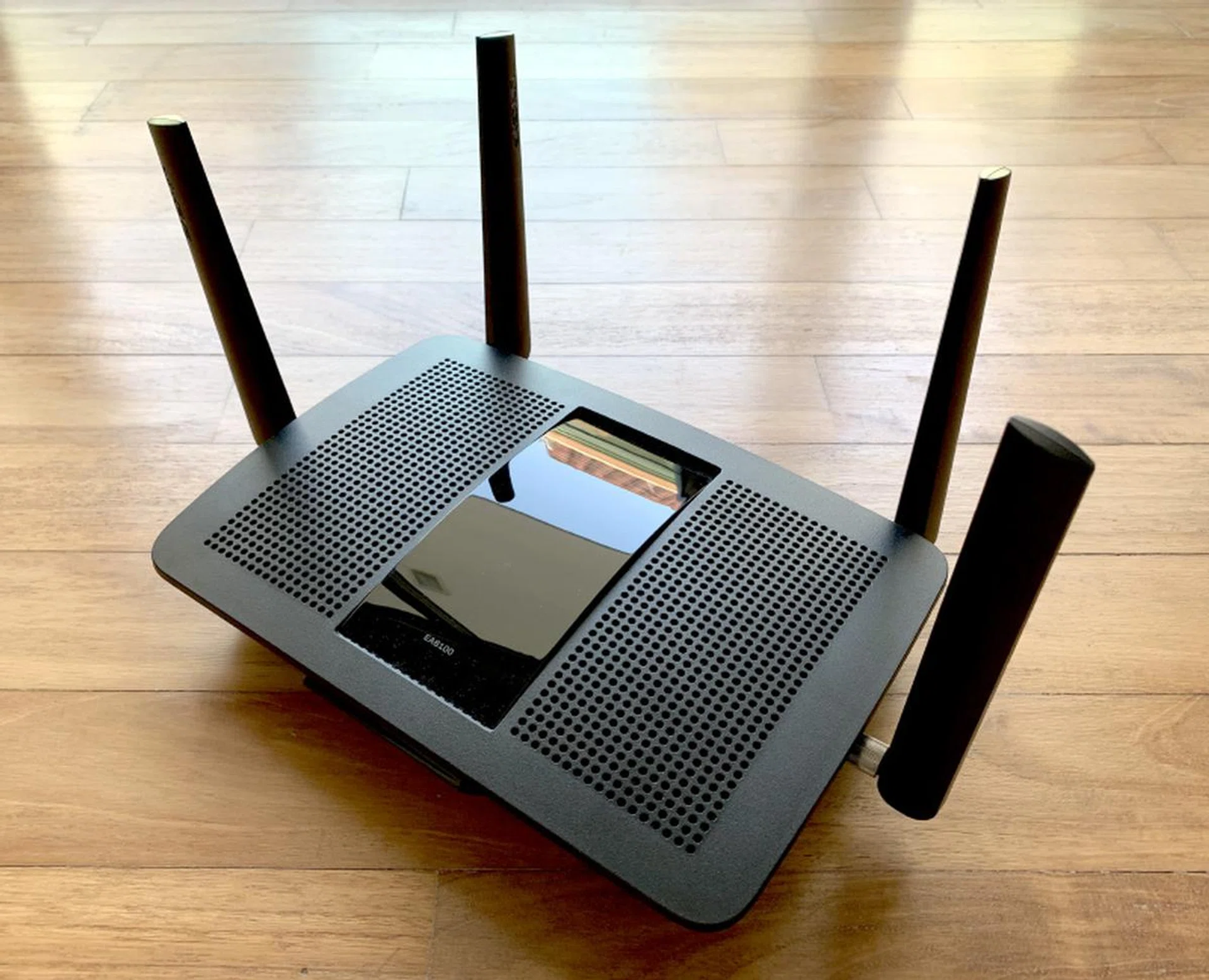

Yeah, unfortunately, Linksys’ routers aren’t known for being lookers but at least the EA8100 router has an inoffensive design - so it shouldn’t look too out of place on a side table or table counter. After all, it is essentially just a black rectangle box with four large antennae sticking out of it.

What ports does it have?

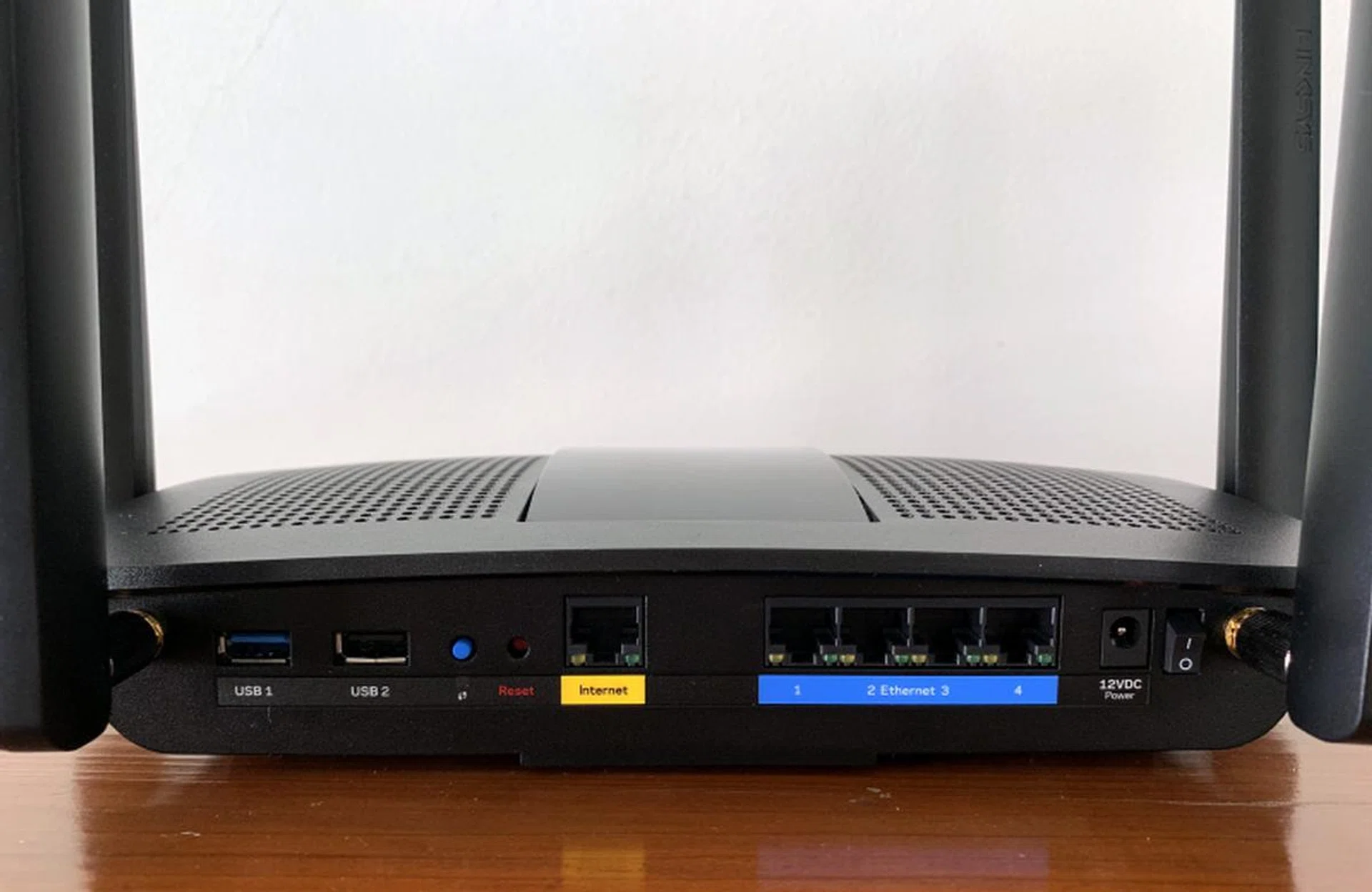

The Linksys EA8100 comes with the usual single gigabit Ethernet WAN port, four gigabit Ethernet LAN ports, a single USB 3.0 port, and a single USB 2.0 port.

Is it easy to setup?

The EA8100 router uses Linksys’ Smart Wi-Fi software stack and I would say that, amongst traditional routers, it is possibly the most user-friendly router management interface. You can’t tweak the EA8100 as much as you can with an ASUS router but the EA8100 provides a good balance between ease of use and features.

What features does it have then?

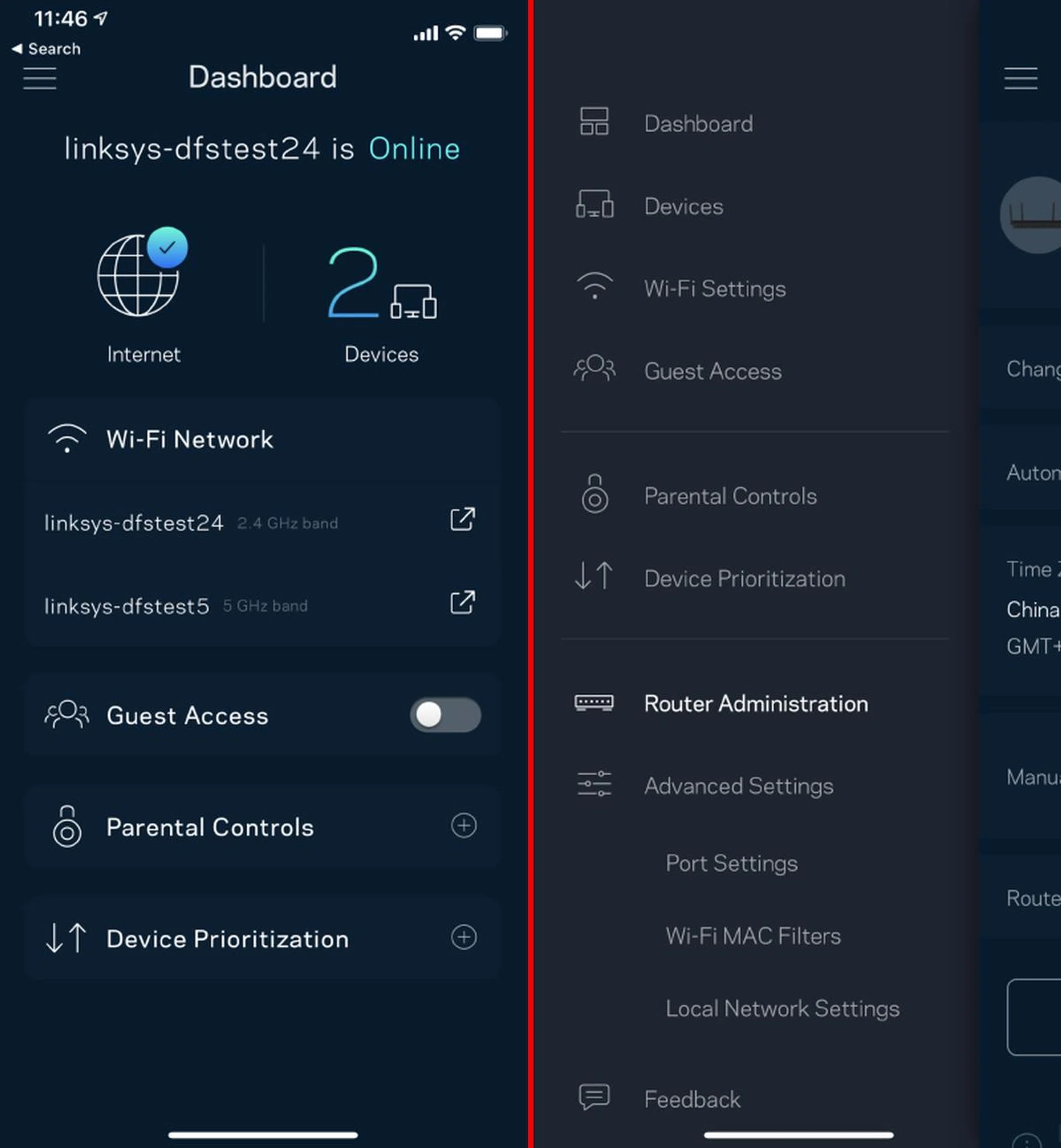

To begin, the EA8100 router can be controlled and managed remotely using the Smart Wi-Fi app (free for iOS and Android devices) or through the Smart Wi-Fi web portal. The app is quite powerful and lets users do the following:

• Manage Wi-Fi networks and passwords
• Create guest networks
• Set device priorities

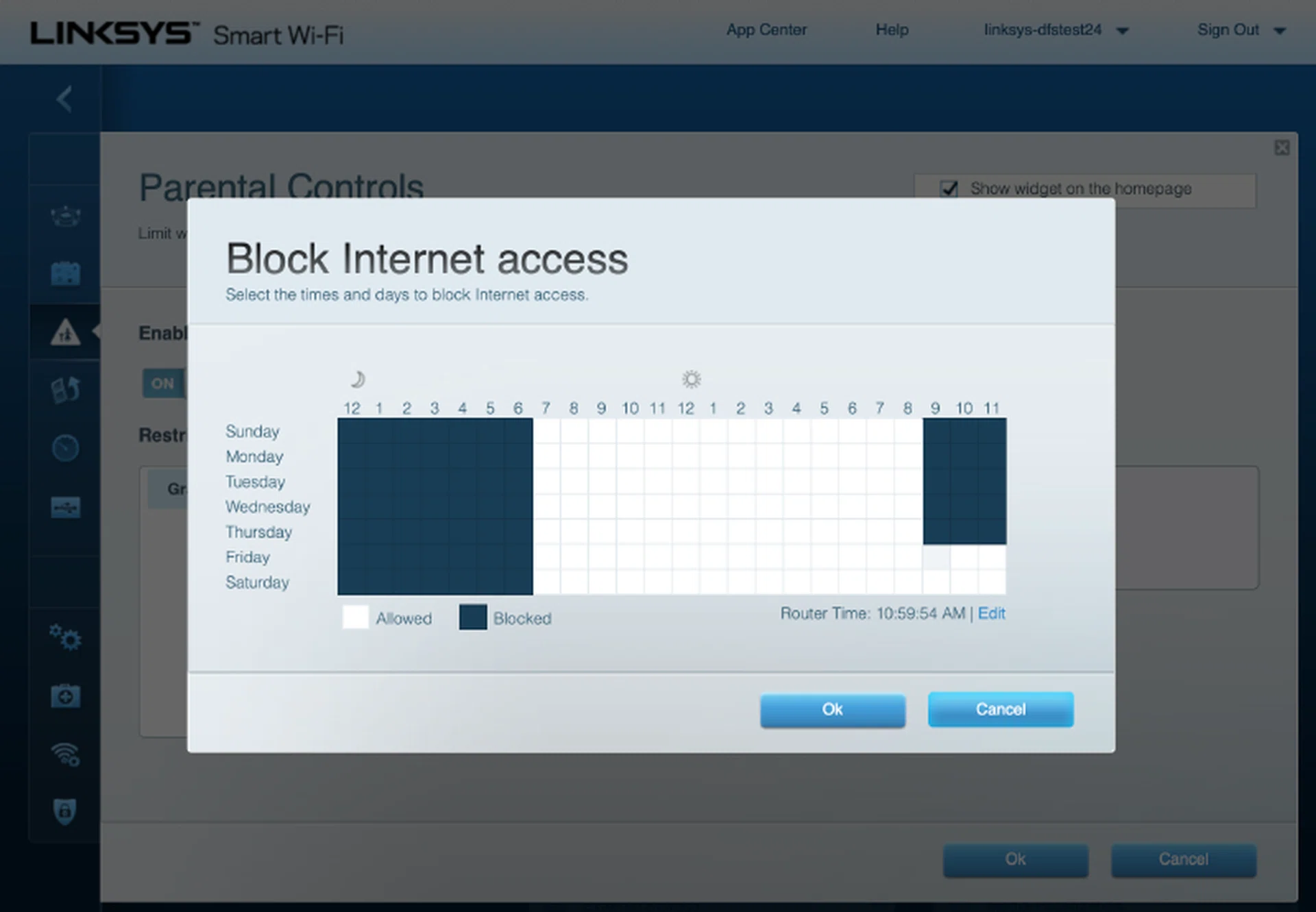

• Parental controls
• Show connected devices
• Port forwarding
• Update firmware

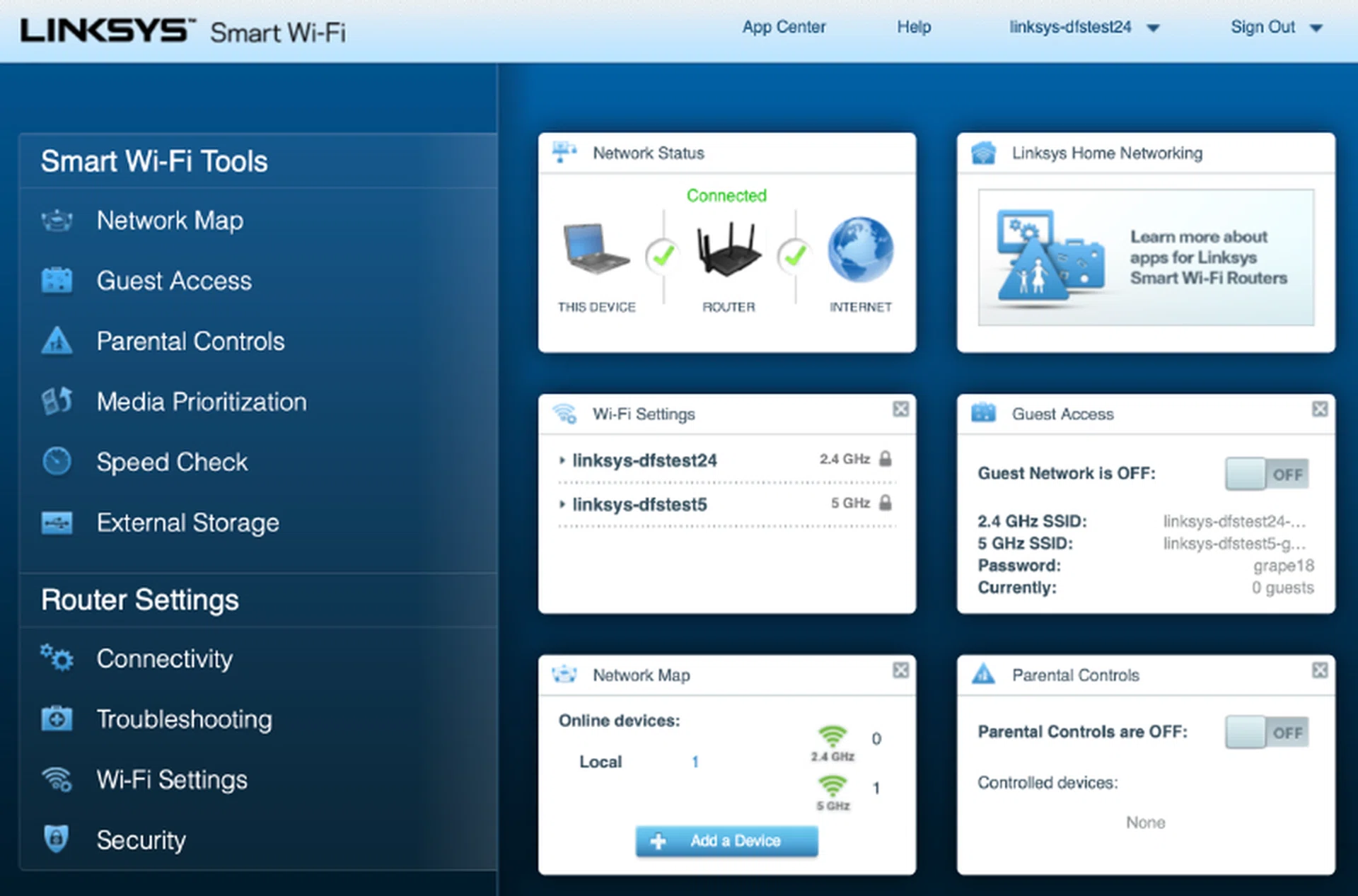

You can do all of the above using the traditional web interface too and a couple more, including:

• Dynamic DNS
• VPN USB file and printer sharing
• Enable/disable NAT
• Enable/disable RIP (Dynamic Routing)
• DMZ host

Overall, it doesn’t offer as many features as ASUS’ routers but it has all the options that most users would need and it is considerably more user-friendly and less intimidating to use.

Test Setup

To test the Linksys EA8100, we are using our standard test setup which consists of two notebooks, one acting as a host machine and the other as a client device. The router, or in this case, node, acts as a gateway. For systems where manual settings are possible, a channel bandwidth of 80MHz is selected where applicable.

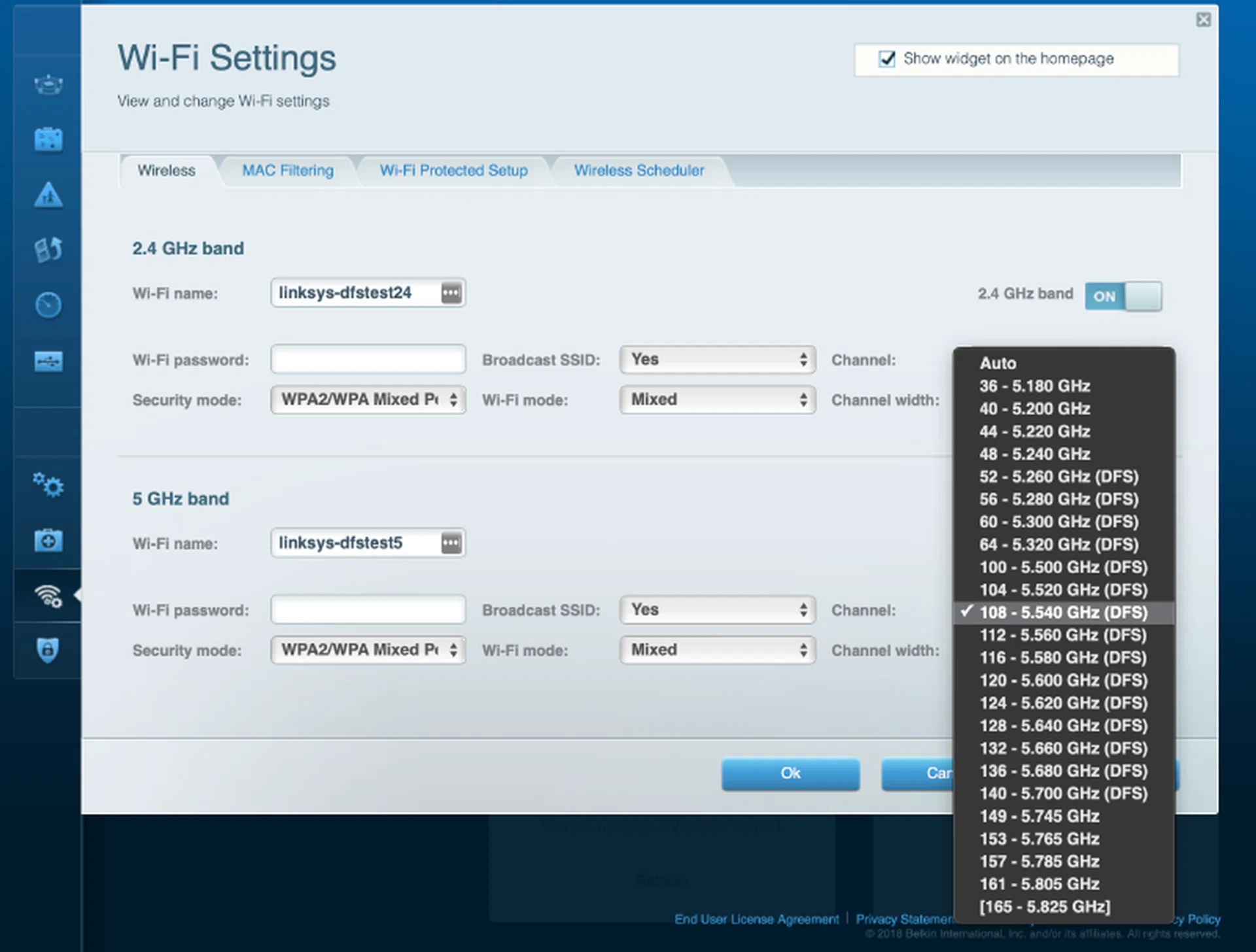

Since the Linksys EA8100 is capable of tapping into the DFS spectrum, we will be using one of the DFS channels to test. Our test environment is moderately noisy and I can detect about 16 to 20 networks at any one time.

The client device is a 2015 13-inch MacBook Pro, which is one of the few client devices in the market to come with a 3x3 Wi-Fi receiver, allowing it to achieve wireless speeds of up to 1,300Mbps.

To evaluate, we will be measuring the time and calculating the speed achieved when transferring a 1GB zip file. We will do multiple tests with different setups and different distances to simulate use around a typical single story flat and in a multi-story home.

Here are the test distances we used and what they represent:

• 2m - Right beside the router
• 5m - In an adjacent room
• 10m - In a room that is farther away
• 15m - To simulate extreme distances (e.g. master bedroom toilet)
• Second storey - One floor above
• Third storey - Two floors above

To evaluate the Linksys EA8100’s performance, we will be comparing it against the Linksys EA9500 (one of the fastest routers we have ever tested) and the Portal Wifi (a compact little router that also supports DFS). We have also included results of the Netgear Orbi (winner of the best mesh networking system at Tech Awards 2018) and the Google Wifi (a very popular mesh networking system).

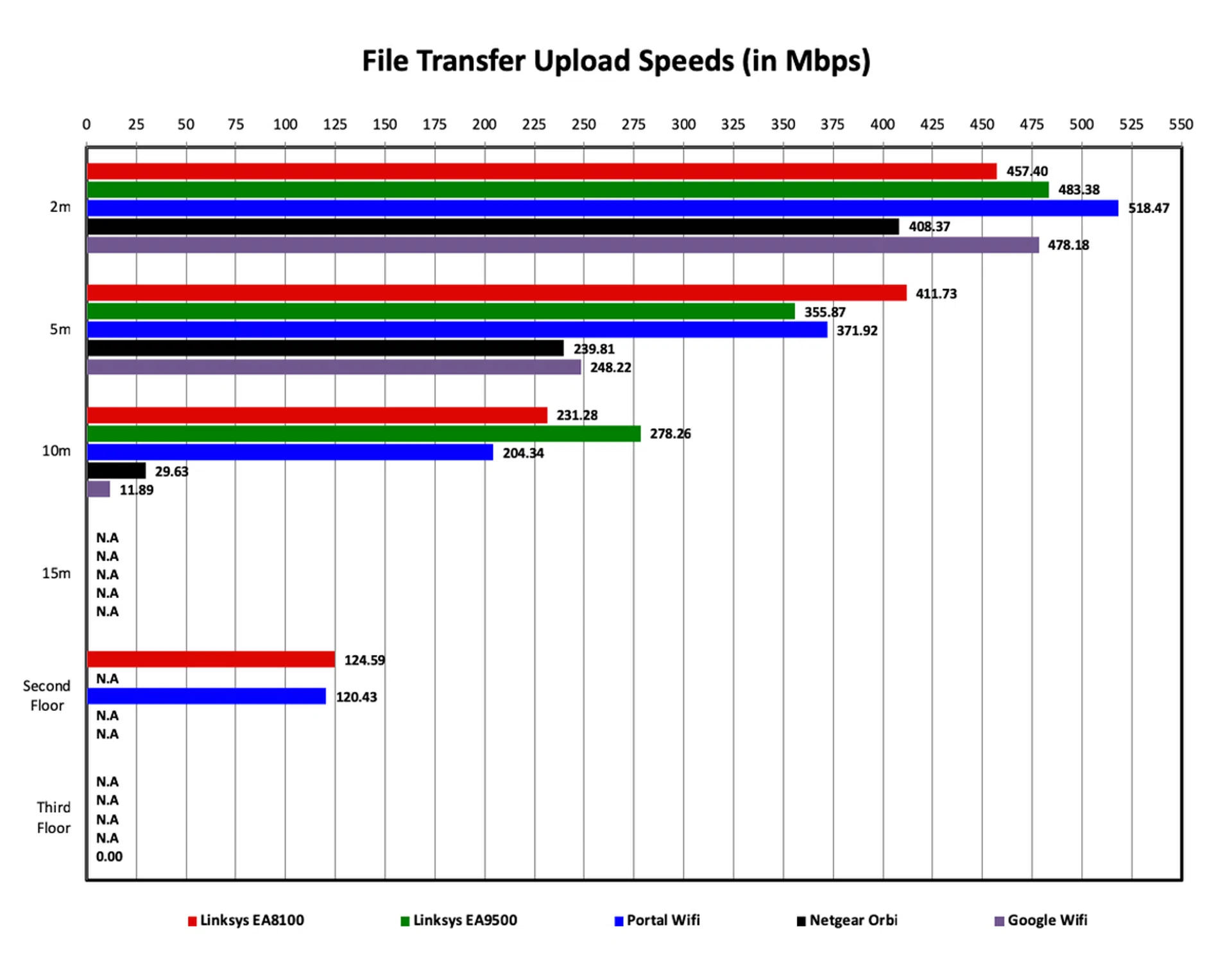

Performance Analysis

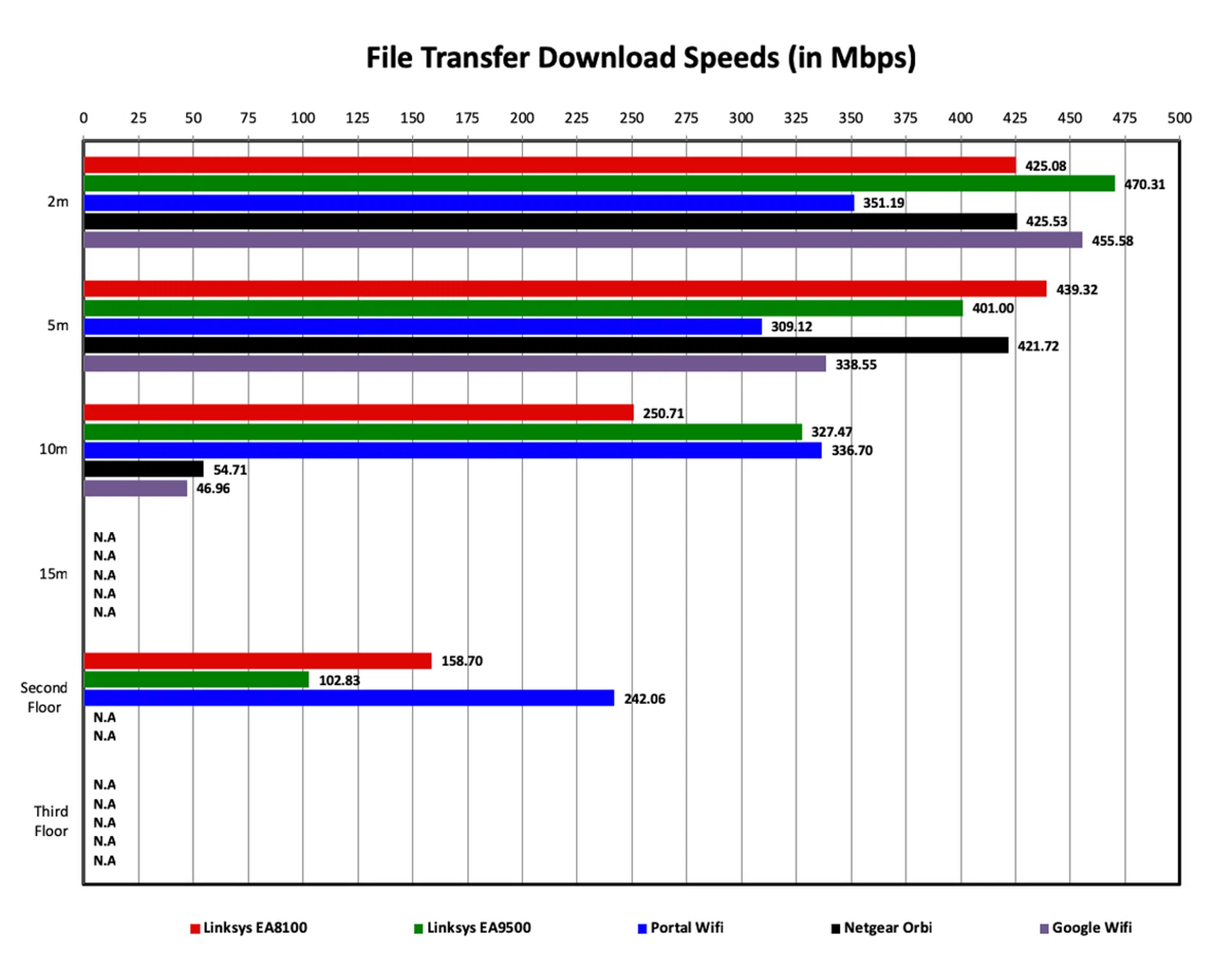

Overall, the Linksys EA8100’s performance can be said to be good. At closer ranges, it kept up with the Linksys EA9500 and was mostly quicker than the Portal Wifi. At 10 meters, its performance dipped quite significantly, especially its downlink speeds. But its uplink speeds at 10 meters was still quite good. Finally, it was the only other router apart from the Portal Wifi to manage meaningful downlink and uplink speeds from the second floor. That said, from the second floor, the Portal Wifi was the faster router overall.

A note about the EA8100's DFS implementation

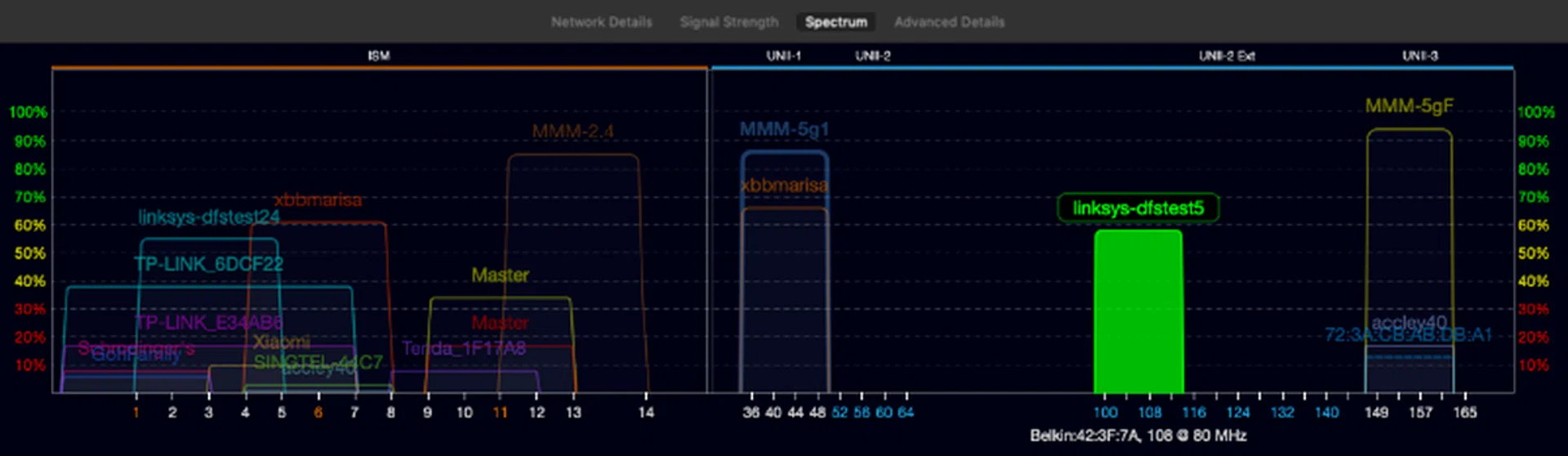

While the EA8100 router has an inclination for using the DFS channels, it does have one shortcoming and that it is if it vacates the DFS spectrum because there is a government radar nearby, it will not automatically return. It will instead just languish in the 'regular' 5GHz spectrum that every other router is using. To rectify this, users need to a) select the channel manually or b) reboot the router. Either way, user intervention is required and it is cumbersome. Another problem is that there is no clear indication if the EA8100 is, in fact, using the DFS channel unless you have a Wi-Fi analyzer or if you constantly go into the router's management interface and check what channel it is on. If it is any consolation, I have been using the router for about two weeks now and I live close to an army camp. Despite this, the EA8100 has been using the same DFS Wi-Fi channel (136) ever since I set it up.

Final Thoughts?

For a router that is given free by an ISP when you sign up for a fiber plan, the Linksys EA8100 is outstanding. Most ISPs only give OEM routers that are short on performance and features, but the Linksys EA8100 has all the features one would expect from a Linksys router and it performs admirably.

As far as performance is concerned, its close range performance was first-rate and it only showed signs of slowing down from beyond 10 meters. And even so, its performance at farther ranges was still very usable. Certainly, browsing the web and watching high-resolution YouTube videos at 10 meters won’t be a problem.

Much of its performance can perhaps be attributed to its support of DFS. DFS isn’t heavily supported by routers yet so jumping on the bandwagon now makes sense as you would be one of the few users to have access to the restricted Wi-Fi channels.

Speaking of DFS, one thing to note is that if the EA8100 router senses radar nearby, it will have to vacate the DFS spectrum. And when it does, it will not automatically return to the DFS spectrum and requires users to either manually change the Wi-Fi channel or reboot the router. Hopefully, Linksys can make the EA8100 more intelligent and have it automatically select a DFS channel when radar is no longer in the vicinity in a future firmware update.

All things considered, the Linksys EA8100 is a competent router that offers a good suite of features and respectable performance. I’m not saying you should sign up with StarHub just to get this router, but if you are considering of signing up with StarHub or if you are already an existing StarHub customer, signing up or recontracting with them isn’t such a bad idea since you get a really nice little router.
