Zotac Announces the New Passive-Cooled ION-ITX R, S and T series
Zotac today introduces three DIY friendly mini-ITX platforms - the new Zotac ION-ITX R, S and T-series.
Zotac today introduces three DIY friendly mini-ITX platforms - the new Zotac ION-ITX R, S and T-series. The new ZOTAC ION-ITX R, S and T series reinvigorates the ION-ITX series with an added boost of graphics power.
Next-Generation NVIDIA ION graphics and a dual-core Intel Atom D525 processor combine to deliver a perfect balance of performance and energy-efficiency in the new ZOTAC ION-ITX R, S and T series. High-definition video playback capabilities enable the ZOTAC ION-ITX R, S and T series to deliver a premium multimedia experience with hardware decode acceleration for smooth playback of high-definition Blu-ray 3D and streaming Internet video content.

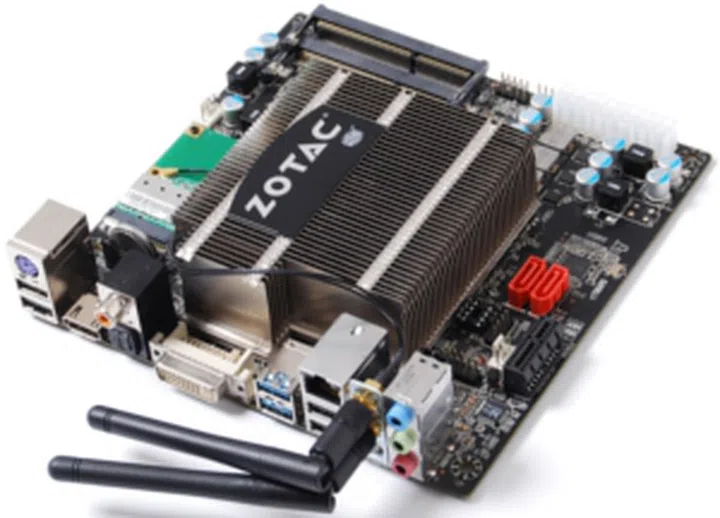

Zotac ION-ITX S
New passive cooling solutions enable the ION-ITX R, S and T series to deliver a phenomenal quiet computing experience perfect for home theatre PCs and silent computing aficionados.
The ZOTAC ION-ITX T series takes energy-efficiency to another level with an integrated DC-DC power supply and included power brick that delivers superior efficiency than standard ATX power supplies for a premium eco-conscious computing.
It’s time to play with the ZOTAC ION-ITX R, S and T series.
General details:
- Next-Generation NVIDIA ION GPU with 512MB DDR3 memory
- Intel Atom D525 (1.8 GHz, dual-core)
- ION-ITX R series
2 DDR2-800 DIMM slots (up to 4GB)
1 PCI Express x1
8 USB 2.0 ports (6 on back panel, 2 via pin header)
ATX power connector - ION-ITX S series
2 DDR3-800 SO-DIMM slots (up to 4GB)
1 PCI Express x1
2 USB 3.0 ports (back panel)
6 USB 2.0 ports (4 on back panel, 2 via pin header)
ATX power connector - ION-ITX T series
2 DDR3-800 SO-DIMM slots (up to 4GB)
1 PCI Express x4 (open-ended slot)
2 USB 3.0 ports (back panel)
6 USB 2.0 ports (4 on back panel, 3 via pin header)
Onboard DC-DC power supply
Included power brick - Dual-link DVI-I and HDMI outputs
- 2 SATA 3.0 Gb/s ports
- Gigabit Ethernet
- Onboard 802.11n WiFi (mini-PCI Express)
- High-definition 6-channel audio
- NVIDIA PureVideo HD technology
- Blu-ray 3D ready (requires separate software)
- Intel HyperThreading technology
- Microsoft DirectX 10.1 compliant
- Mini-ITX form factor
Product Name | ION-ITX R-series | ION-ITX S-series | ION-ITX T-series |
Chipset |
Intel NM10 Express | ||
Power | ATX | ATX | Onboard DC-DC power supply |
GPU | Next-Generation NVIDIA ION w/ 512MB DDR3 | ||
CPU | Intel Atom D525 (1.8GHz, dual-core) | ||
System Bus | 800MHz | ||
Memory Support | 2 DDR2-800
DIMM slots | 2 DDR3-800
SO-DIMM slots | |
Memory Capacity | Up to 4GB | ||
Expansion | PCI Express x1 | PCI Express x1 | PCI Express x4
(open-ended slot) |
SATA | 2 SATA 3.0 Gb/s | ||
Display Outputs | Dual-link DVI-I & HDMI | ||
WiFi | 802.11n (150 Mb/s) | ||
Ethernet | Gigabit (10/100/1000 Mb/s) | ||
USB | 8 USB 2.0
(6 on back panel,
2 via pin header) | 2 USB 3.0 (back panel)
6 USB 2.0 (4 on back panel, 2 via pin header) | |
Audio | 6-channel high-definition audio
HDMI audio output
Digital S/PDIF output (optical & coaxial) | ||
DirectX Support | DirectX 10.1 with Shader Model 4.1 | ||
Other hardware features |
| ||
Windows 7 capability | Certified for Windows 7 premium |
