Z68 Preview: Gigabyte GA-Z68X-UD7-B3
With around two weeks to the official launch, Z68 motherboards are making their way to reviewers around the world. We take a quick look at Gigabyte's high-end Z68 offering, the GA-Z68X-UD7-B3.
A Z68 in P67's Clothing
Enthusiasts who have been holding off on jumping on the Sandy Bridge platform will finally have a reason to do so. Intel's Z68 Express chipset, which promises to merge the best of the P67 and H67 chipsets, is slated to debut early next month and we have already previewed ASUS' . The next manufacturer to send us a review unit ahead of time is Gigabyte, who kindly offered its high-end GA-Z68X-UD7-B3 board.
You may have read about it online, but apparently, the UD7 has been spotted for sale in retail shops in Taiwan. It's the same model that we'll be looking at here today, though we do have a few more shots than just the box. However, the packaging is indeed attractive enough to deserve its own shot, what with its profusion of logos and marketing slogans:

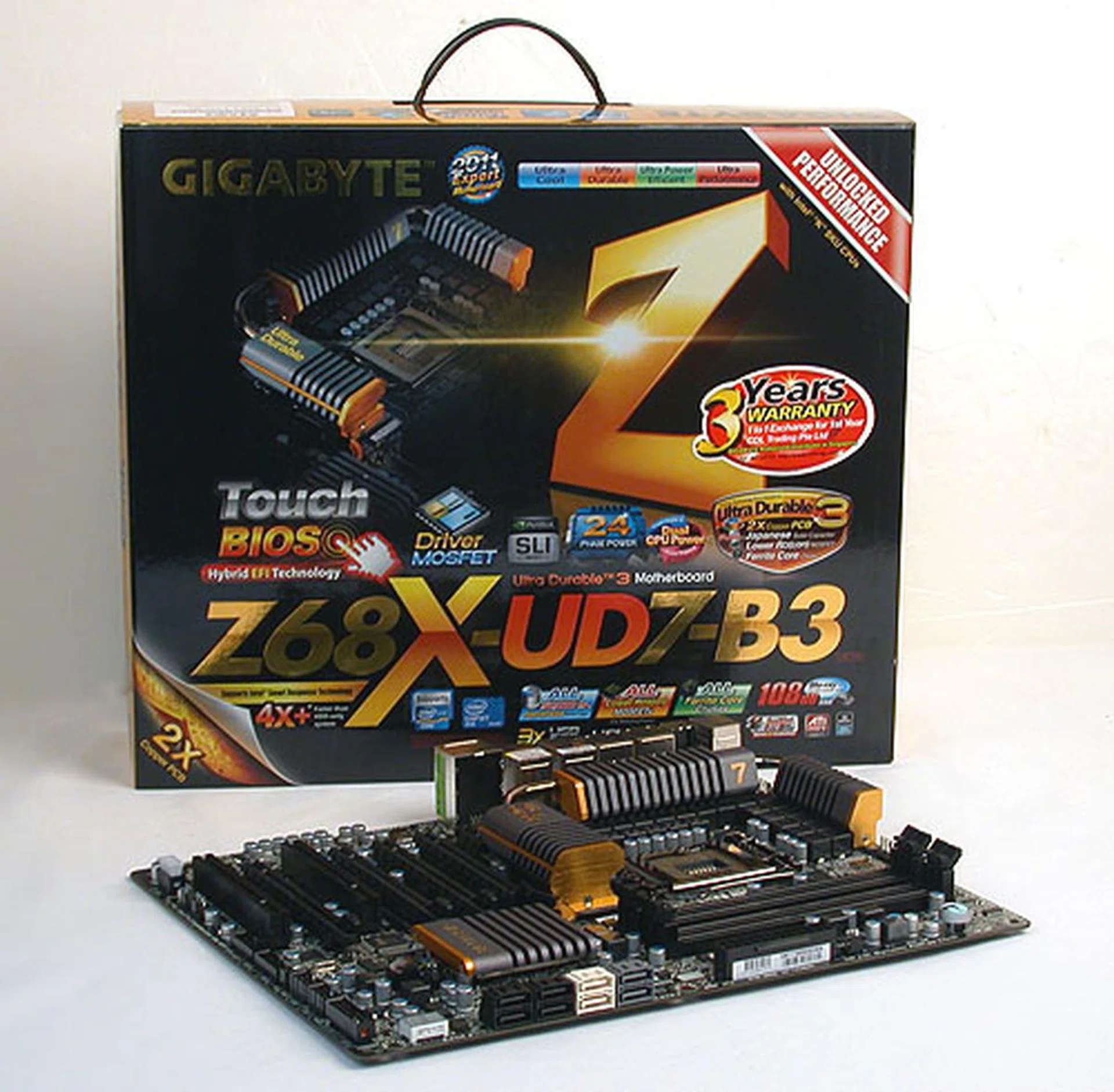

Gigabyte seems to believe that the more logos the better, with the packaging of this Z68 board festooned with them.
When we examined the physical Z68 board, we were slightly taken aback at how familiar it seemed. We weren't wrong, as a closer look, along with a check with our showed that the new Gigabyte Z68 board was an identical twin to its P67 UD7 model. On hindsight, it's only logical that Gigabyte would replicate its P67 design with a Z68 chipset; the ASUS P8Z68V-PRO was also quite similar to its P67 boards.
There was nevertheless a major difference between this Gigabyte and the ASUS board - the GA-Z68X-UD7-B3 had no integrated display outputs at the rear panel like the ASUS. This makes this Z68 board even more like a clone of Gigabyte's P67 offering, as it offers only a discrete graphics option.
It also begs the question why Gigabyte went with a solely discrete option that appears to undermine the whole point of having a versatile chipset like the Z68 Express. From what we understand from Gigabyte, the manufacturer feels that the UD7 is a high-end SKU where the users are almost certainly going to have a discrete graphics card (or two), especially given the presence of an NF200 controller to allow for up to 3-way SLI/CrossFireX.
As for the other benefits of having the integrated graphics present, which we have highlighted in the , like Intel Quick Sync and Lucid's Virtu technologies, Gigabyte responded that Intel's Quick Sync was supported by a limited number of software currently for transcoding and it's not that essential for the target audience of the UD7.
The same too applies for Virtu, which while allowing dynamic switching between the integrated and discrete graphics, incurs a slight performance penalty (Gigabyte quotes between 1 to 3%) in the process. This is something that would not fly with users who have chosen to splurge on a high-end motherboard like the UD7. Those who wish to get the best of both worlds and enjoy the full advantages of the Z68 Express chipset, can look forward to Gigabyte's lower-end models, which will have Virtu and integrated display outputs for the Sandy Bridge processor.
Without knowing the rest of Gigabyte's lineup, it's a reasonable explanation for the UD7's design. It does make this Z68 board practically indistinguishable from its P67 cousins, except for the chipset's support for Intel Smart Response, or SSD caching, which should accelerate your system performance by a decent amount, depending on your applications and of course, your SSD.

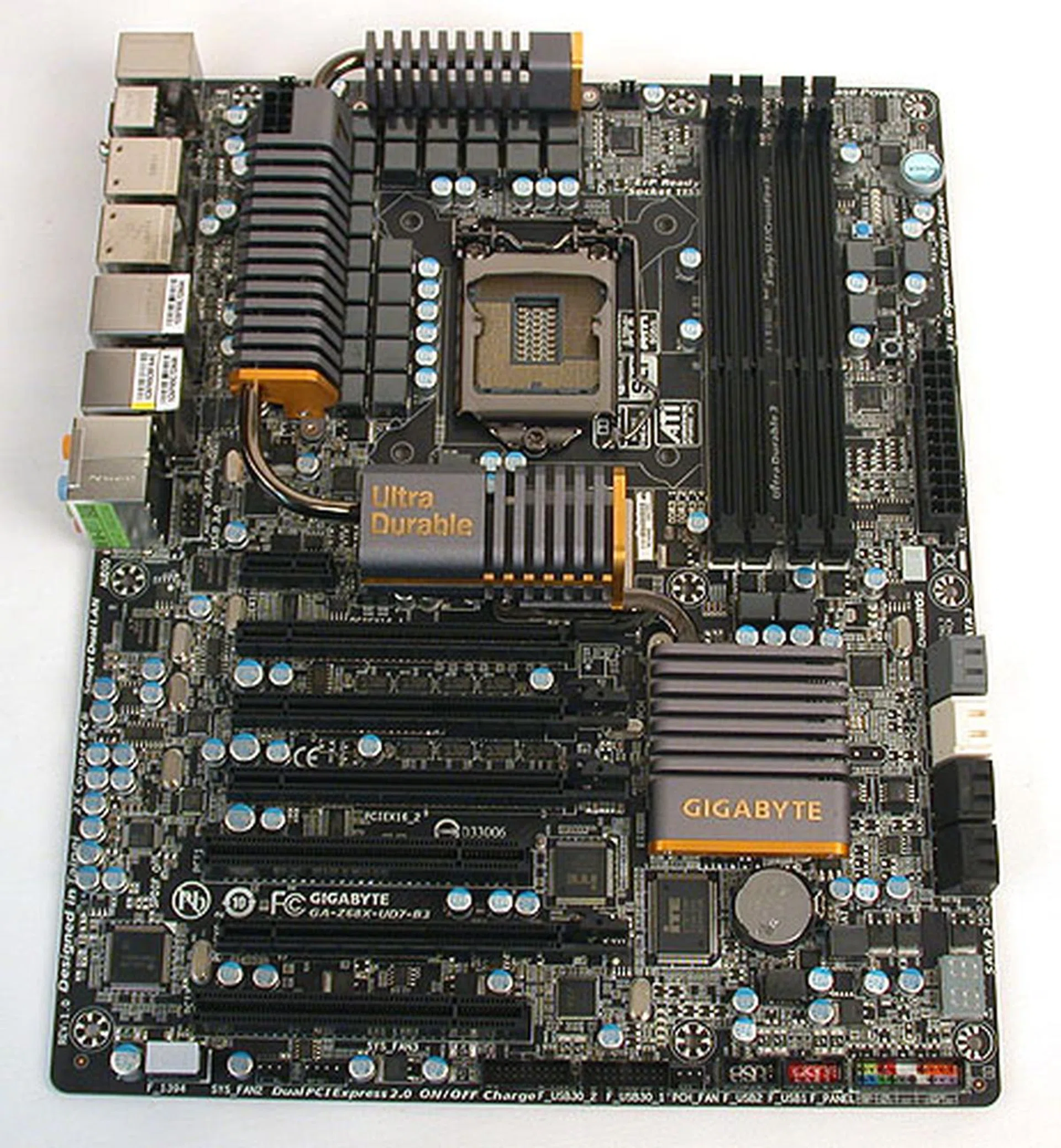

And this is the new, high-end Z68 board from Gigabyte, as you can tell from the UD7 designation. It does look awfully familiar ...

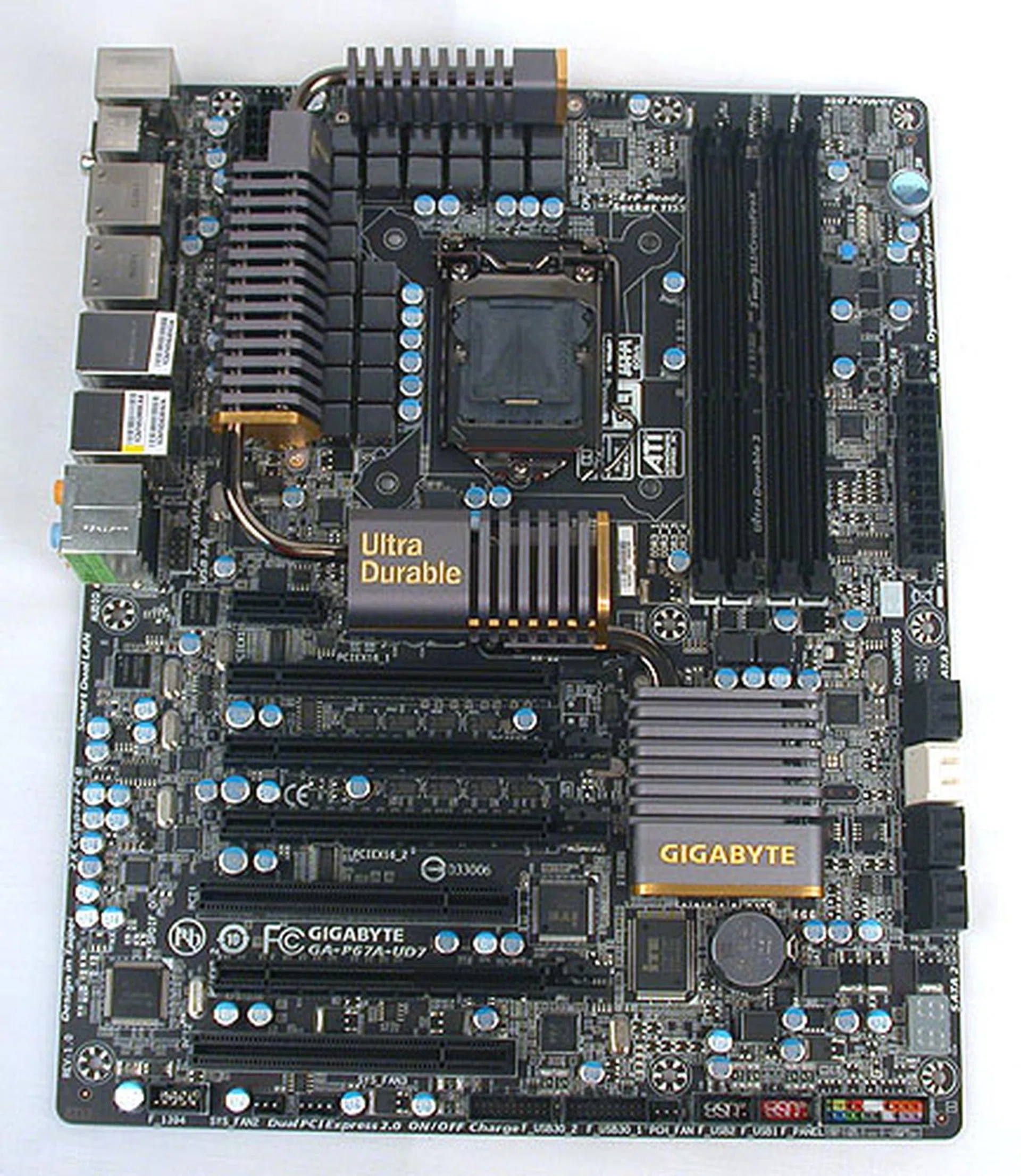

And what do you know? This Z68 UD7 looks like an exact copy of Gigabyte's P67 UD7. Even the placement of onboard components, like USB 3.0 controllers and PCIe expansion slots appear to be identical.

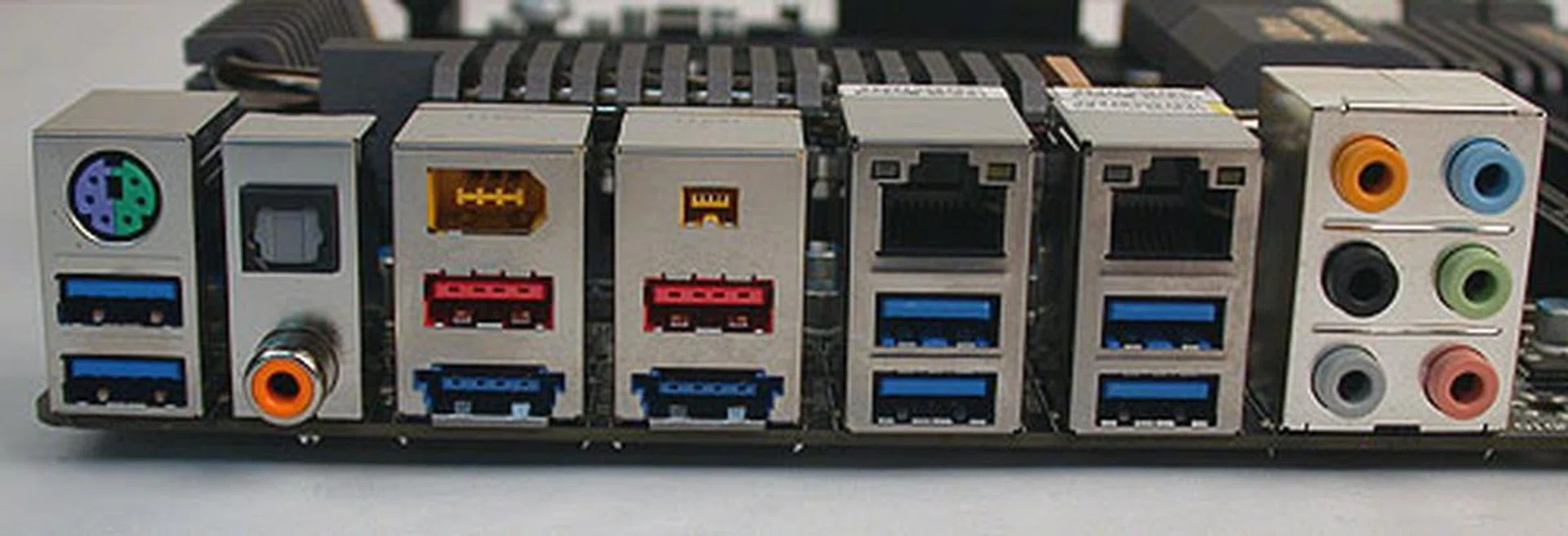

It's all about the USB 3.0 ports on these newer motherboards, with VIA's VLI VL810 USB hubs extending the Renesas (NEC) USB 3.0 controllers. Despite this, Gigabyte still retains the FireWire options. There are also two LAN ports, a rather common configuration for the high-end segment.
More of the Same
As we mentioned, this Gigabyte Z68 board is practically identical to its P67 UD7 counterpart. Outwardly, it looks identical, from the hefty, eight layer PCB enhanced with Gigabyte's Ultra Durable technology (this just means more copper content in the PCB), to the matte black color scheme with gold trimmings. It's a handsome board and it comes with many features you'll associate with the high-end segment. From extra SATA 6Gbps ports to FireWire and dual Gigabit LAN ports, they are all here. There are also a generous number of USB 3.0 ports and of course, support for 2-way/3-way SLI and CrossFireX due to the NF200 controller.
In short, we are repeating what we had said in our Gigabyte GA-P67A-UD7 review, including Gigabyte's Hybrid EFI BIOS, which looks exactly like an old-school non-EFI BIOS, but nevertheless supports the 3TB disks that users are concerned about. Further discussion with Gigabyte revealed that they'll have a brand new update to its BIOS real soon to satisfy those who've been waiting for a more modern BIOS interface. More on that when it's officially announced.
We'll also let you know how this board performed once the NDA is lifted, but for now, take a look at this board and see if you can spot the differences between this and the P67 UD7. We sure didn't manage to find any.

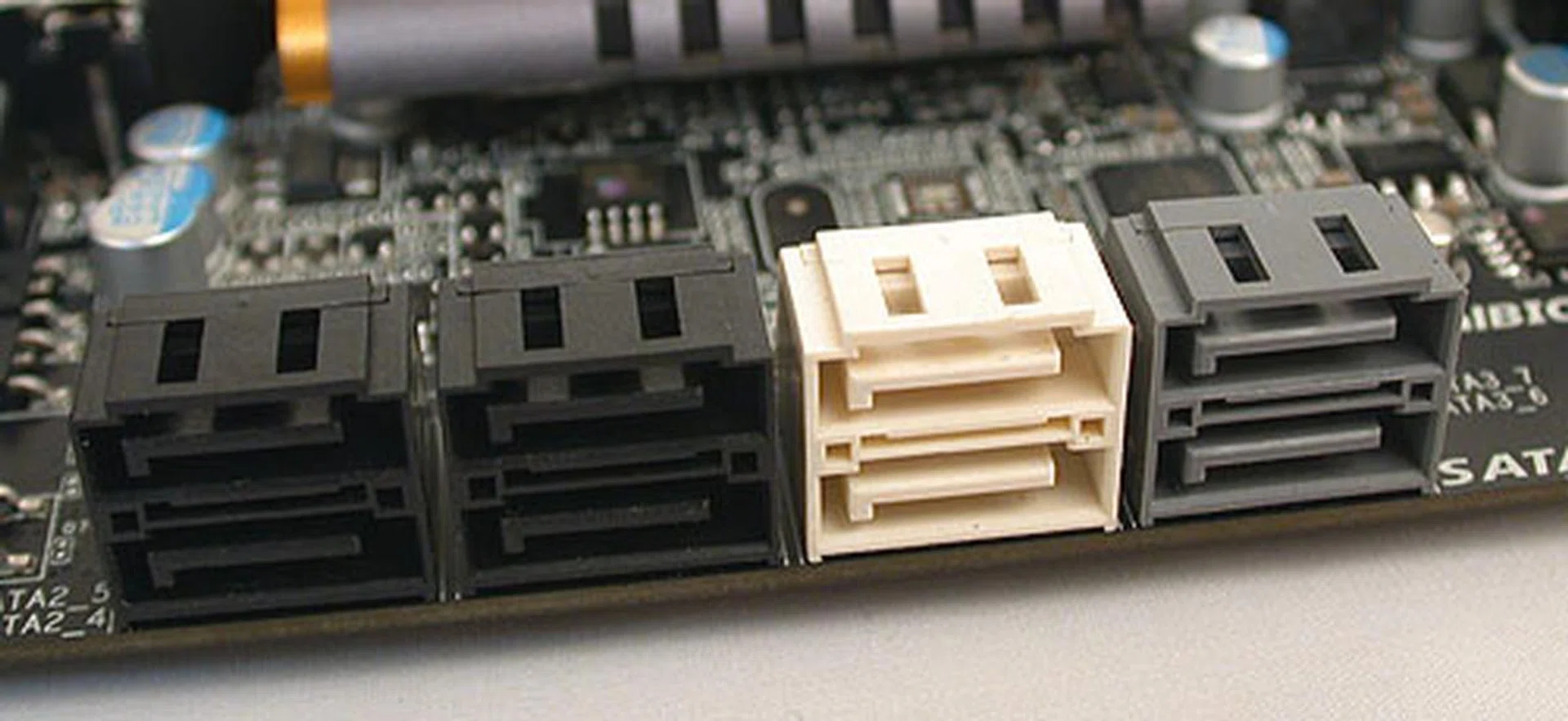

Eight SATA ports should be enough for most users. The four on the left here are SATA 3Gbps ports from the Intel Z68 Express chipset, while the ones in white are SATA 6Gbps versions. The two gray ones are from the Marvell 88SE9128 chip and support SATA 6Gbps speeds.

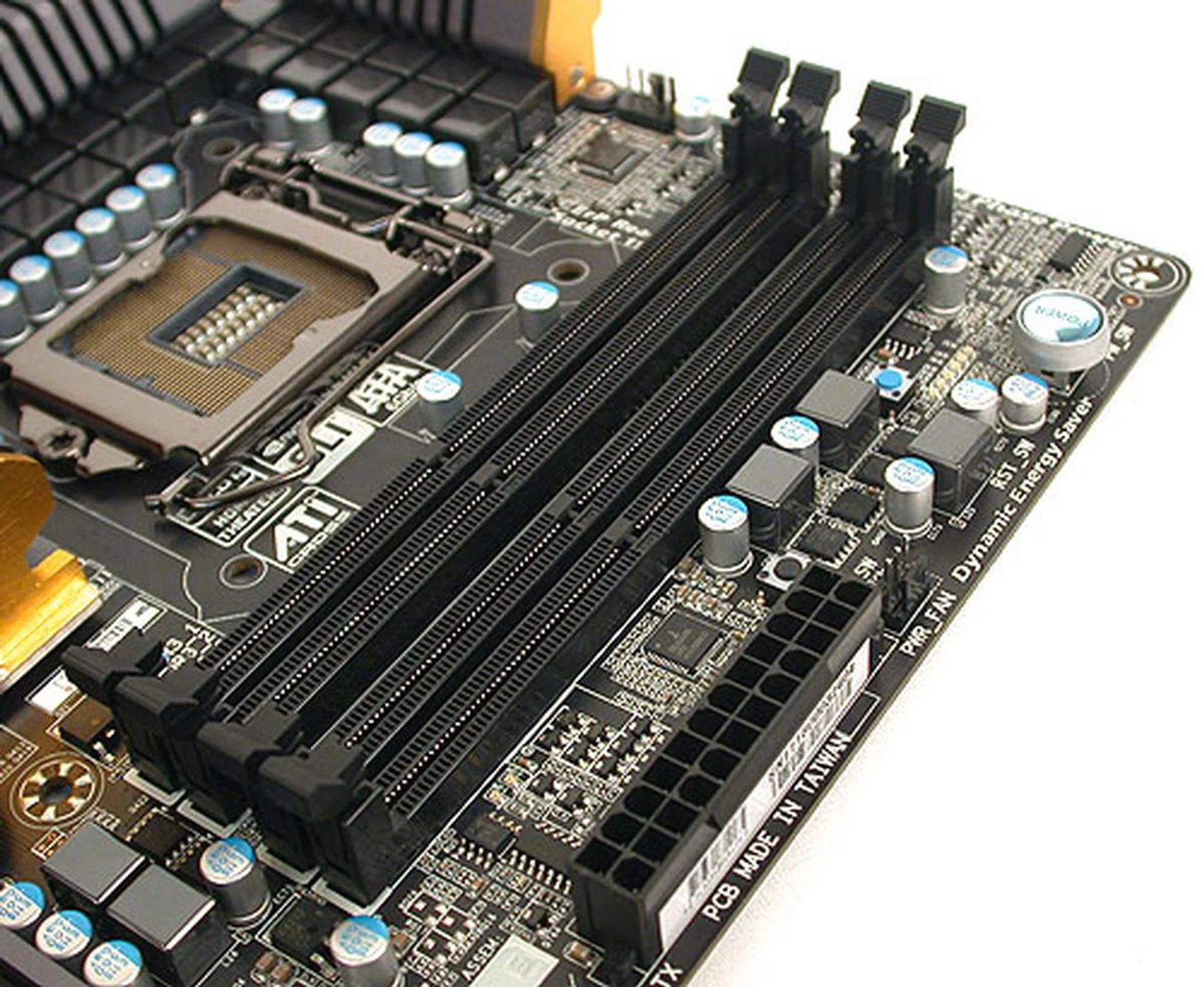

Gigabyte has gone all dark and moody for this generation of motherboards and all the DIMM slots are black to go with the theme. They support up to 2133MHz DDR3 memory modules, for a total of 32GB.

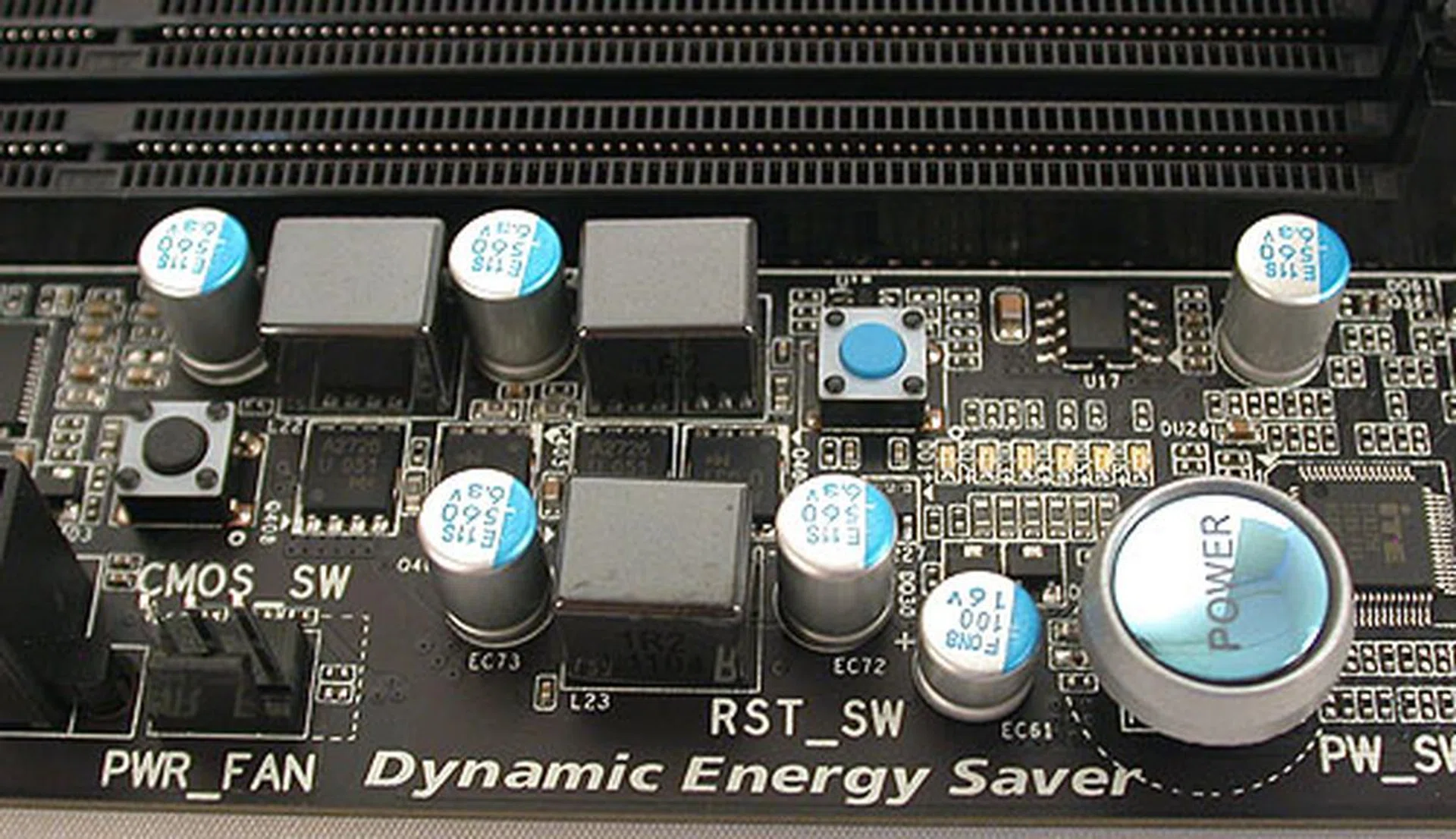

Around the larger power button, there's a black Clear CMOS switch and a small blue button to reset the system.

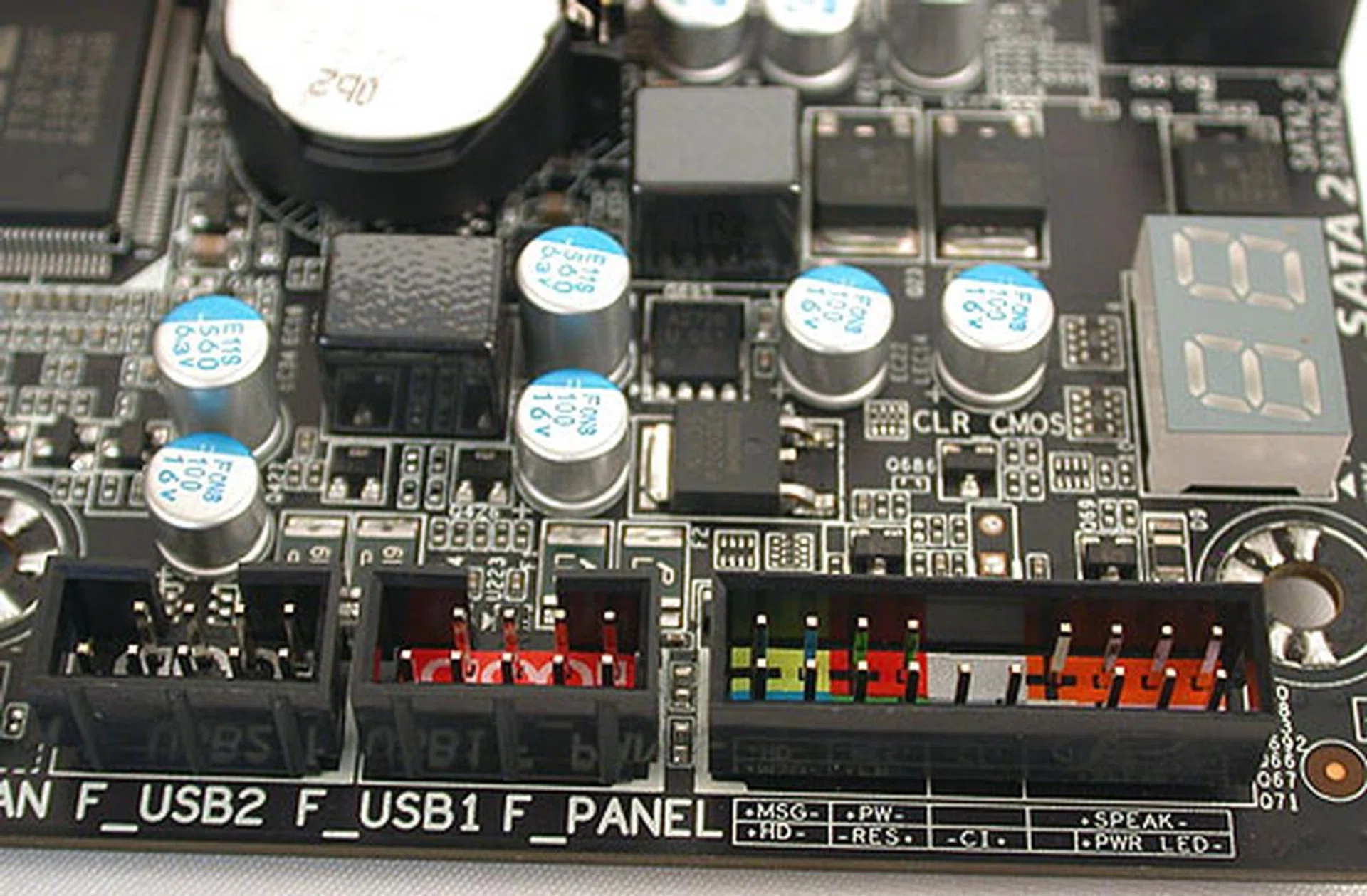

The headers for the front panel are labeled and color-coded to help users. There's also a debugging LED. Again, this configuration is identical to what we saw on Gigabyte's P67 UD7 board.

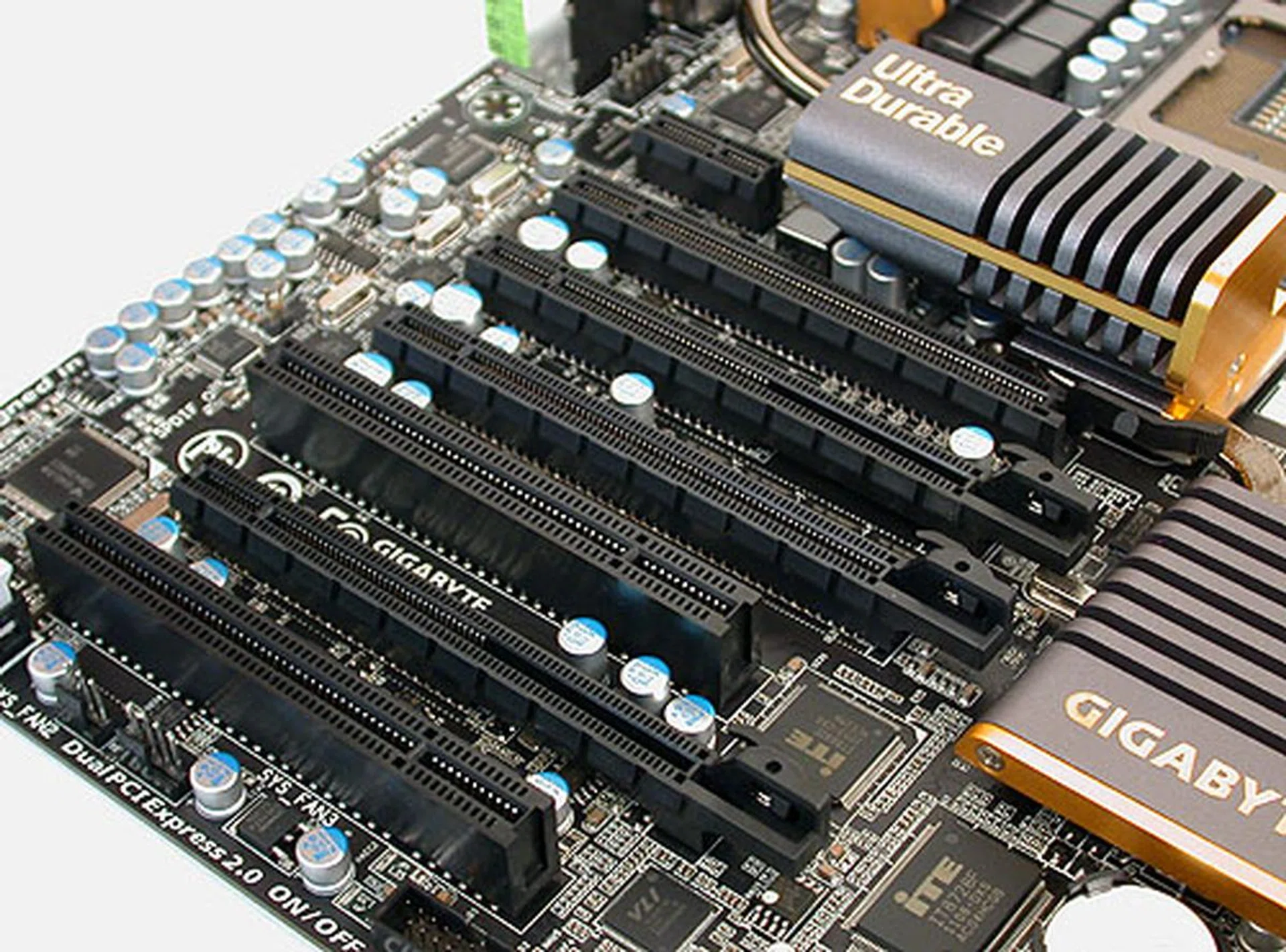

While the NF200 controller allows for a x8 configuration on each of the four graphics cards it can support simultaneously, there is only space physically for three such graphics cards, given the dual-slot nature of just about every decent graphics cards worth owning.

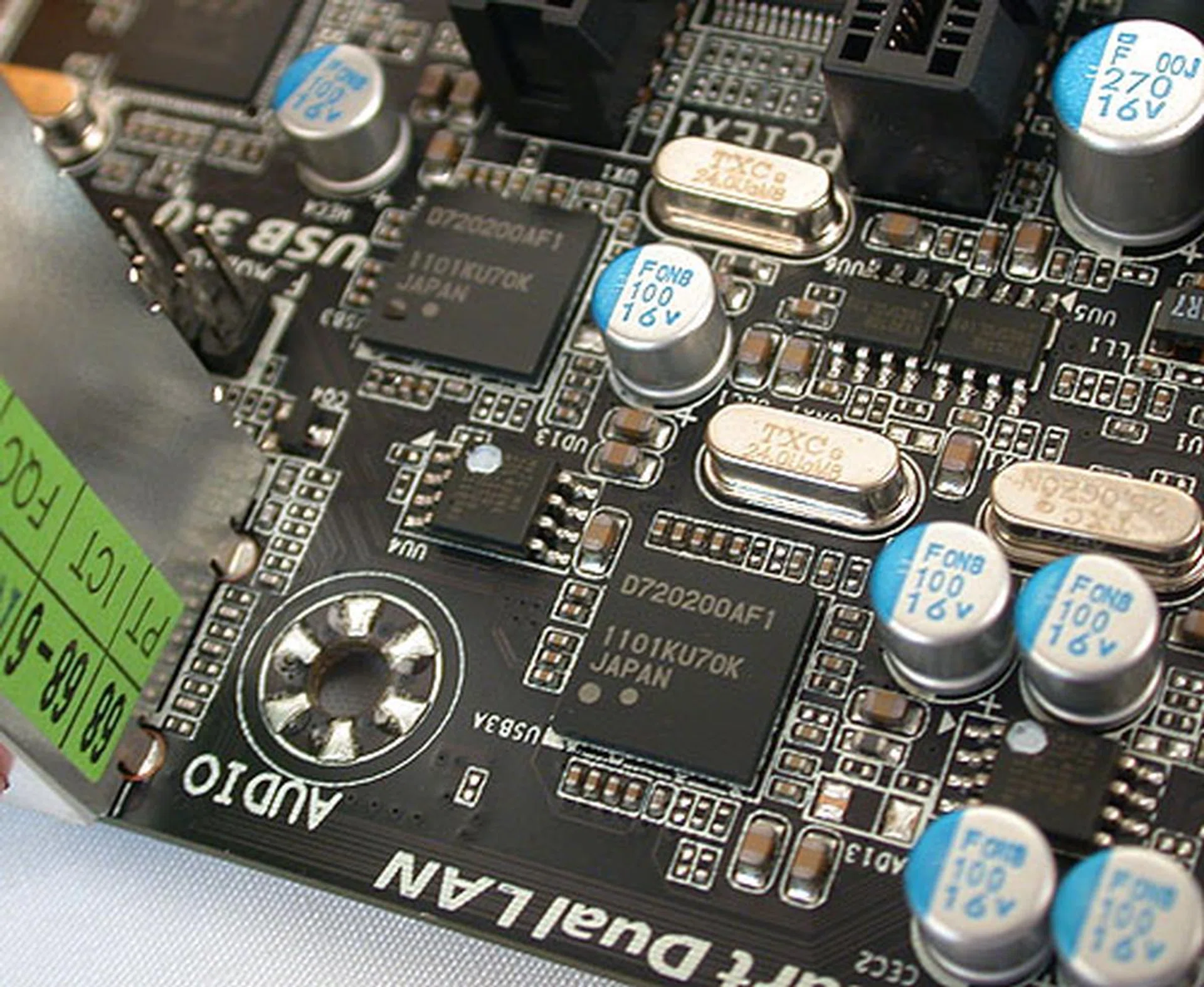

The two USB 3.0 controllers from Renesas (NEC) and the VIA USB hubs combine to enable up to 10 USB 3.0 ports (6 at the rear and 4 through headers).

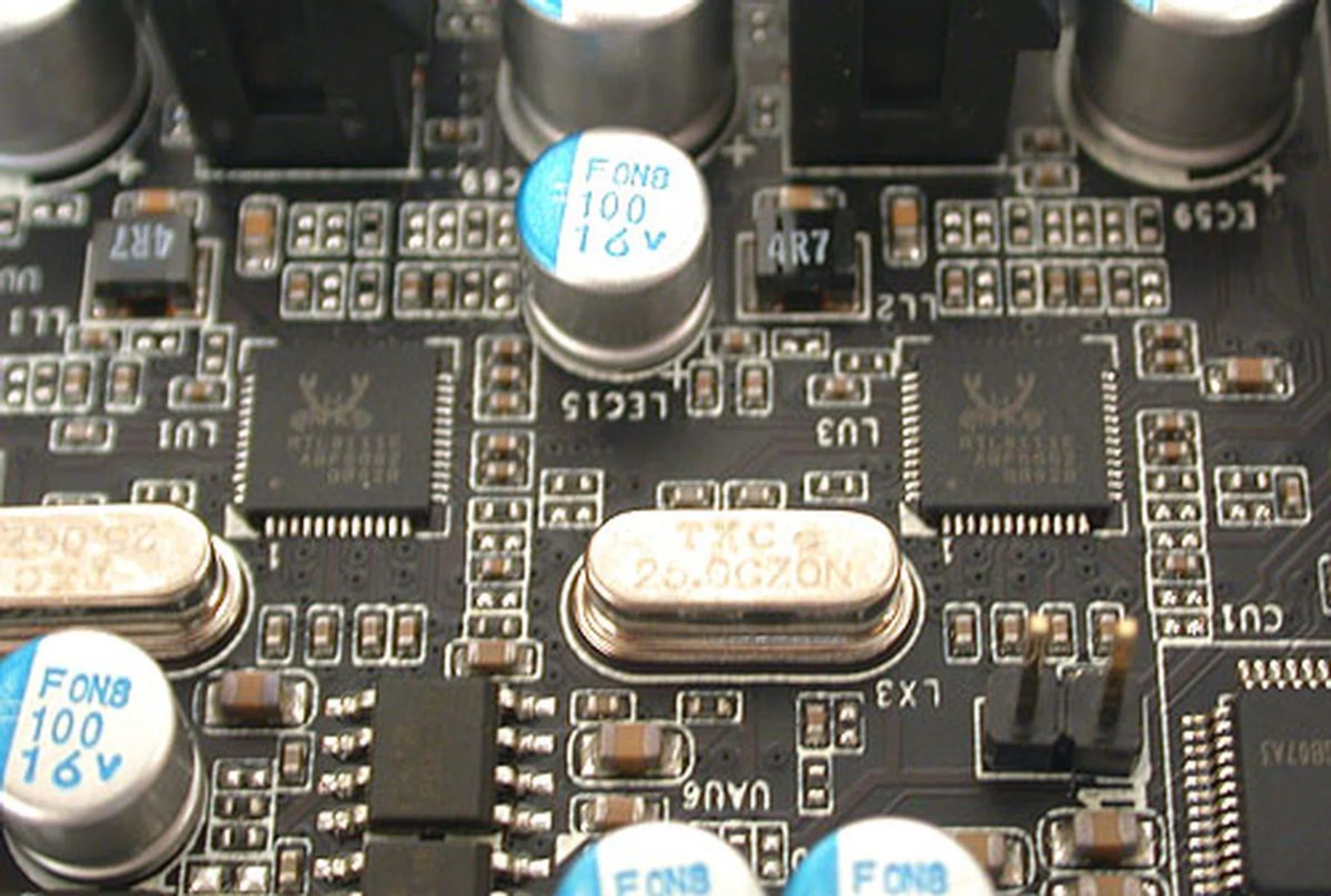

Two Realtek RTL8111 Gigabit LAN controllers should satisfy the most demanding user.

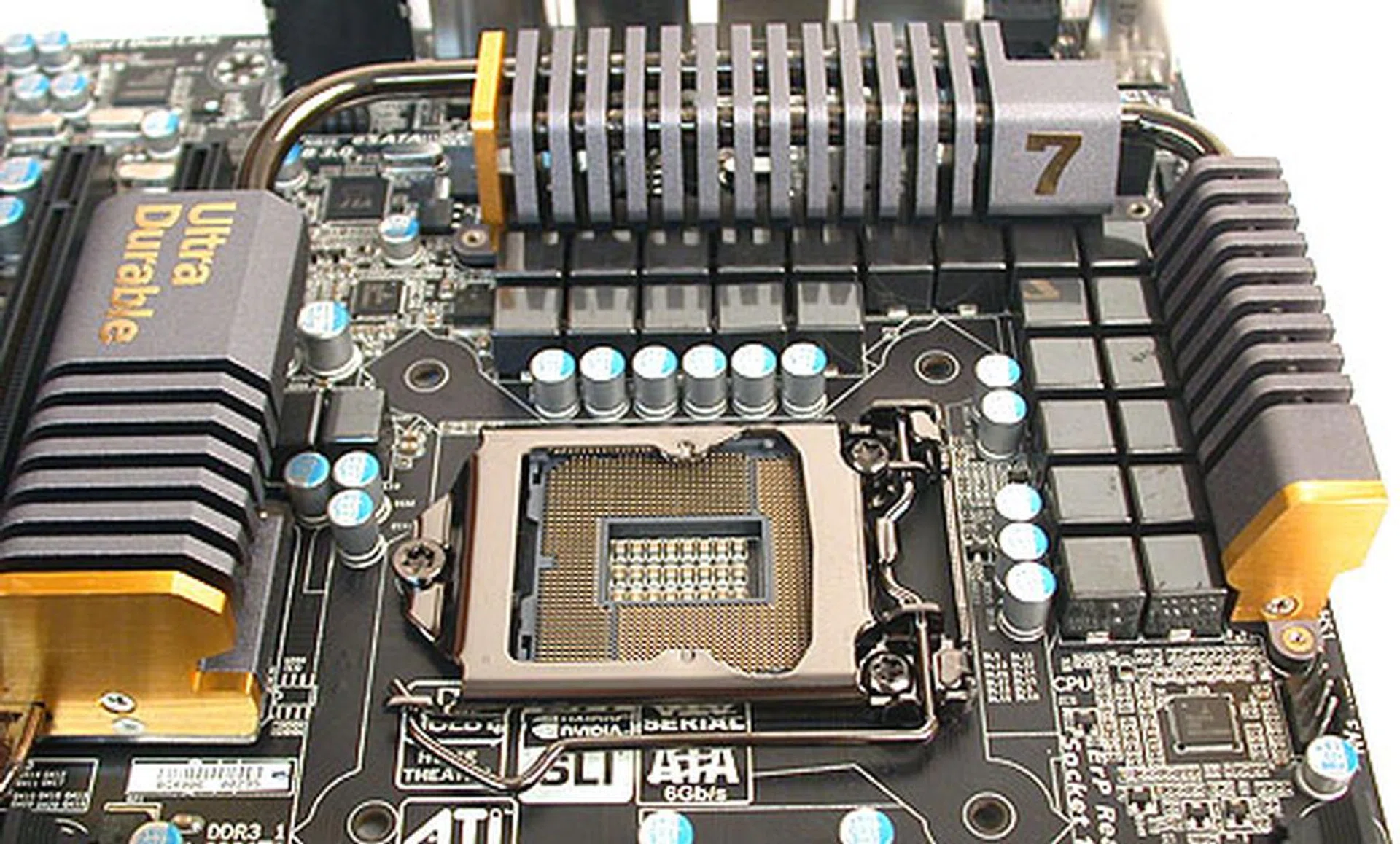

Gigabyte is not shy to tout the capable and stable 24-phase power delivery system on its high-end board.
