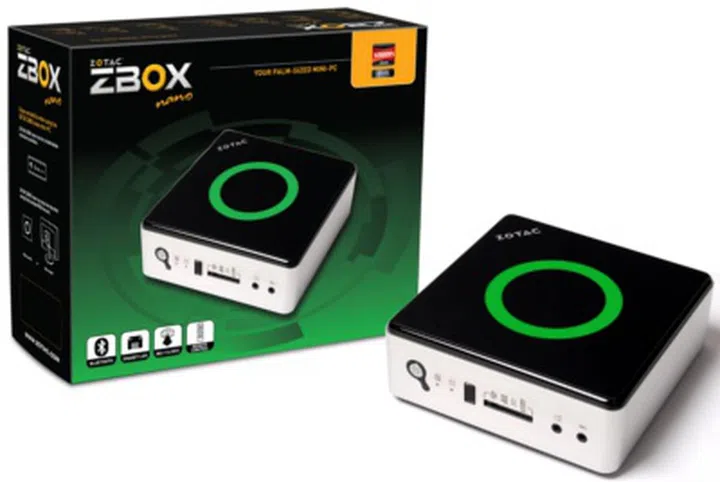

HONG KONG - Zotac today debuts the palm-sized ZBOX nano AD10 series mini-PCs. The new ZOTAC ZBOX nano AD10 series shrinks the standard ZBOX form factor and adds more home theatre PC friendly features for your digital media needs.
Powered by the AMD “Brazos” E-350 APU Platform with Discrete-Class AMD Radeon HD 6310 graphics, the ZOTAC ZBOX nano AD10 series packs plenty of performance with hardware video decode acceleration technologies for popular high-definition video formats, including Blu-ray and Adobe Flash, into a miniature 127mm x 127mm x 45mm form factor that fits in the palm of your hand.
New to the ZOTAC ZBOX nano AD10 series is an integrated infra-red receiver with bundled Windows Media Center compatible remote control – a USB IR receiver is also bundled.
Customizing the ZOTAC ZBOX nano AD10 series remains easy with two thumb screws that unlock the internals. A DDR3 SO-DIMM slot and space for a 2.5-inch SATA 6.0 Gb/s hard drive or SSD is available in the ZOTAC ZBOX nano AD10 while the ZBOX nano AD10 Plus ships with 2GB of memory and a 320GB hard drive preinstalled.
A new VESA 75/100 mount for monitor or wall mounting installations is included with all ZOTAC ZBOX nano AD10 series mini-Pcs and enables users to attach the mini-PC in four different orientations for improved flexibility.
ZBOX nano AD10 | ZBOX nano AD10 Plus | |
SKU | ZBOXNANO-AD10 | ZBOXNANO-AD10-PLUS |
Memory | 1 x 204-pin DDR3-1066 SODIMMslot | 2GBDDR3 |
Hard Disk | 1 x 2.5-inch | 320GB5400RPM |
CPU | AMD E-350 APU Platform (1.6 GHz, dual-core) | |
GPU | AMD Radeon HD 6310 | |
Video Memory | Unified Memory Architecture | |
Display Options | HDMI (w/audio) & DisplayPort | |
Memory Card Reader | 6-in-1 (SD/SDHC/MMC/MS/MS Pro/xD) | |
SATA | eSATA(rear) | |
Ethernet | 10/100/1000Mbps | |
Wi-Fi | Onboard 802.11n WiFi & Bluetooth 3.0 | |
USBPorts | 2 USB 2.0 (rear)
2 USB 3.0 ports (rear) | |
Audio | Onboard analog stereo high-definition audio
7.1-Channel digital audio (LPCM and Bistream capable via HDMI) | |
DirectX Support | DirectX 11 with Shader Model 5 | |
Other Features | OpenCL compliant, OpenGL 4.1 compatible, AMD UVD technology | |
HDCP | Yes | |
Windows 7 Capability | Windows 7 with Aero user interface and DirectCompute compatible |
