In addition to announcing its Relit LSX-700 Lighting/Audio system, Yamaha has introduced a barrage of V77 Series Home Theater System Packages.

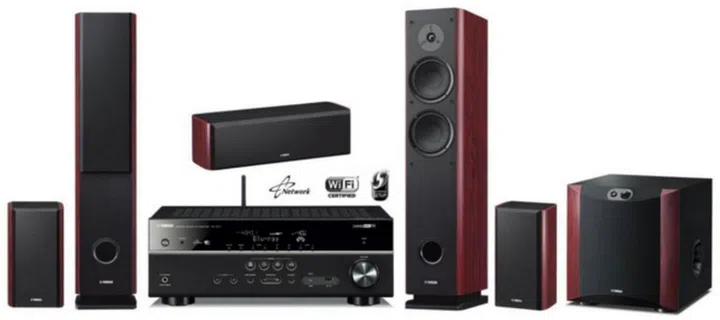

Model DHT-577 Home Theater System Package
S$2,599
(Black/Rosewood, Titanium/Black)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V577 Network Receiver | RMS 115w x 7 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 161 x 315mm
8.1kg |
NS-F160 Front Speakers System | - | Woofers: Dual 16cm cone
Tweeter: 3cm soft dome | 218 x 1042 x 369mm
19kg per unit |
NS-C160 Center Speaker System | - | Woofers: Dual 8cm cone
Tweeter: 1.4cm balance dome | 465 x 135 x 172mm
2.9kg |
NS-B160 Surround Speakers System | - | Woofers: Dual 8cm cone
Tweeter: 1.4cm balance dome | 150 x 265 x 152mm
1.8kg per unit |
NS-SW300 Subwoofer | 250W | 25cm cone | 350 x 366 x 420mm
18kg |
Model MHT-577 Home Theater System Package
S$1,599
(Black/Rosewood, Titanium/Black)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V577 Network Receiver | RMS 115w x 7 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 161 x 315mm
8.1kg |
Front &Surround Speakers NS-B160 | - | Woofers: 8cm cone
Tweeter: 1.4cm balanced dome | 150 x 265 x 152mm
1.8kg per unit |
Centre Speaker NS-C160 | - | Woofers: 8cm cone
Tweeter: 1.4cm balanced dome | 465 x 135 x 172mm
2.9kg per unit |
Subwoofer NS-SW200 | 130W | 20cm cone | 290 x 306 x 351mm
11.2kg |
Model MHT-4774 Home Theater System Package
S$1,199
(Black/Black, Titanium/White)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V477 Network Receiver | RMS 115w x 5 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 151 x 315mm
7.4kg |
Front & Surround Speakers NS-B40 | - | 7cm full-range cone | 112 x 176 x 116mm
0.59kg per unit |
Centre Speakers NS-C40 | - | 7cm full-range cone | 276 x 111 x 118mm
0.73kg |
Subwoofer NS-SW40 | 100W | 16cm cone | 290 x 292 x 327mm
8kg |
Model MHT-477 Home Theater System Package
S$1,199
(Black/Black, Titanium/Black)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V477 Network Receiver | RMS 115w x 5 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 161 x 315mm
8kg |
Front & Surround Speakers NS-B20 | - | 7cm full-range cone | 115 x 176 x 88mm
0.48kg per unit |
Centre Speakers NS-C20 | - | 7cm full-range cone | 291 x 101 x 103mm
0.68kg |
Subwoofer NS-SW20 | 100W | 16cm cone | 262 x 264 x 299mm
7kg |
Model MHT-3774 Home Theater System Package
S$899
(Black/Black)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V377 Network Receiver | RMS 100w x 5 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 151 x 315mm
7.4kg |
Front & Surround Speakers NS-B40 | - | 7cm full-range cone | 112 x 176 x 116mm
0.59kg per unit |
Centre Speakers NS-C40 | - | 7cm full-range cone | 276 x 111 x 118mm
0.73kg |
Subwoofer NS-SW40 | 100W | 16cm cone | 290 x 292 x 327mm
8kg |
Model MHT-377 Home Theater System Package
S$899
(Black/Black, Titanium/Black)
This home theater system package comprises of the following components:-
Power Output | Driver Size | Dimensions (W x H x D) / Weight | |
RX-V377 Network Receiver | RMS 100w x 5 channels (6ohms, 1kHz, 0.9% THD, 1ch driven) | - | 435 x 151 x 315mm
7.4kg |
Front & Surround Speakers NS-B20 | - | 7cm full-range cone | 115 x 176 x 88mm
0.48kg per unit |
Centre Speakers NS-C20 | - | 7cm full-range cone | 291 x 101 x 103mm
0.68kg |
Subwoofer NS-SW20 | 100W | 16cm cone | 262 x 264 x 299mm
7kg |
