LG Hom-Bot Square Robotic Vacuum Cleaner - It's Hip to be Square

Rise of the Robots

Hectic work schedules, the need for more personal time to pursue our own interests, whatever it is, it seems that 24 hours a day is never enough, and the last thing on our minds is to do chores around the house. For the past 10 or so years, one little gadget has been helping keep our homes clean and that is the robotic vacuum cleaner.

While they are certainly helpful (to a certain extent), they do have their limitations. Firstly, path-finding is often quite suspect on these gadgets and most robotic vacuum cleaners seem to go about doing their jobs in a random, haphazard manner, making them inefficient and at times downright silly.

Secondly, one of the biggest challenges facing these cleaners is the ability to avoid and navigate around obstacles. Seeing that self-braking technologies are already quite effective and advanced on motor vehicles, one would assume that this technology could be easily transferred to robotic vacuum cleaners too, but this could not be further from the truth. On the roads, a car’s sensors need only look out for other automobiles, which are usually quite large and come in fairly standardized shapes. Back at home, the robotic vacuum cleaner has to navigate their way through a limitless variety of obstacles including rugs, floor lamps, chairs, tables, ornaments and decorative pieces and much more. To complicate matters, these come in a variety of shapes and sizes, making it hard for robotic vacuum cleaners to avoid hitting and bumping into them.

Thirdly, most robotic vacuum cleaners that we have seen thus far have a circular design. Although the reasons why have not been explicitly explained, we believe that in the event of a collision, a circular design would lessen the area of impact and allow the robot an easier path of corrected navigation. In addition, early models often lack sensors and instead rely on a retractable bumper to absorb shock when it bumps into an obstacle. This makes it difficult for such robotic vacuum cleaners to clean certain areas such as along the walls, corners and around obstacles such as floor lamps and the legs of tables and chairs.

Having reviewed the very first mass consumer robotic vacuum cleaner more than a decade ago, the Electrolux Trilobite, we thought it's time we revisited this space to see how these smart home gizmos have progressed and LG's second generation Hom-Bot caught our attention. Costing about a third of the distant Trilobite predecessor, we check out how if it has made enough progress to warrant our recommendation.

Design & Features

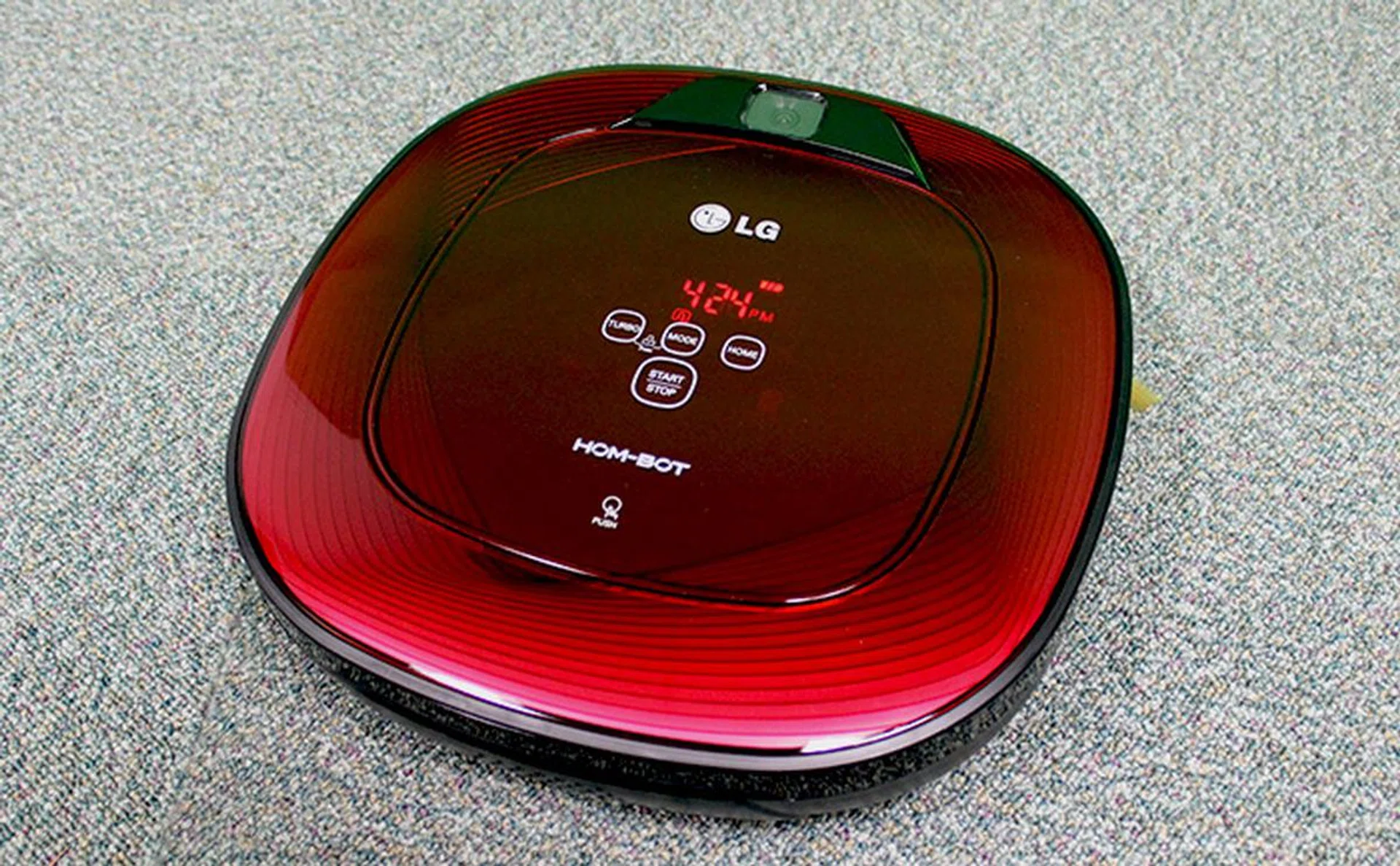

It is with the above mentioned problems and limitations in mind that the new LG Hom-Bot Square was designed and conceived. The most notable design change with regards to previous generation robotic vacuum cleaners from LG is that the Hom-Bot Square has, you guessed it, a squarish, cube-like design (when viewed from the top).

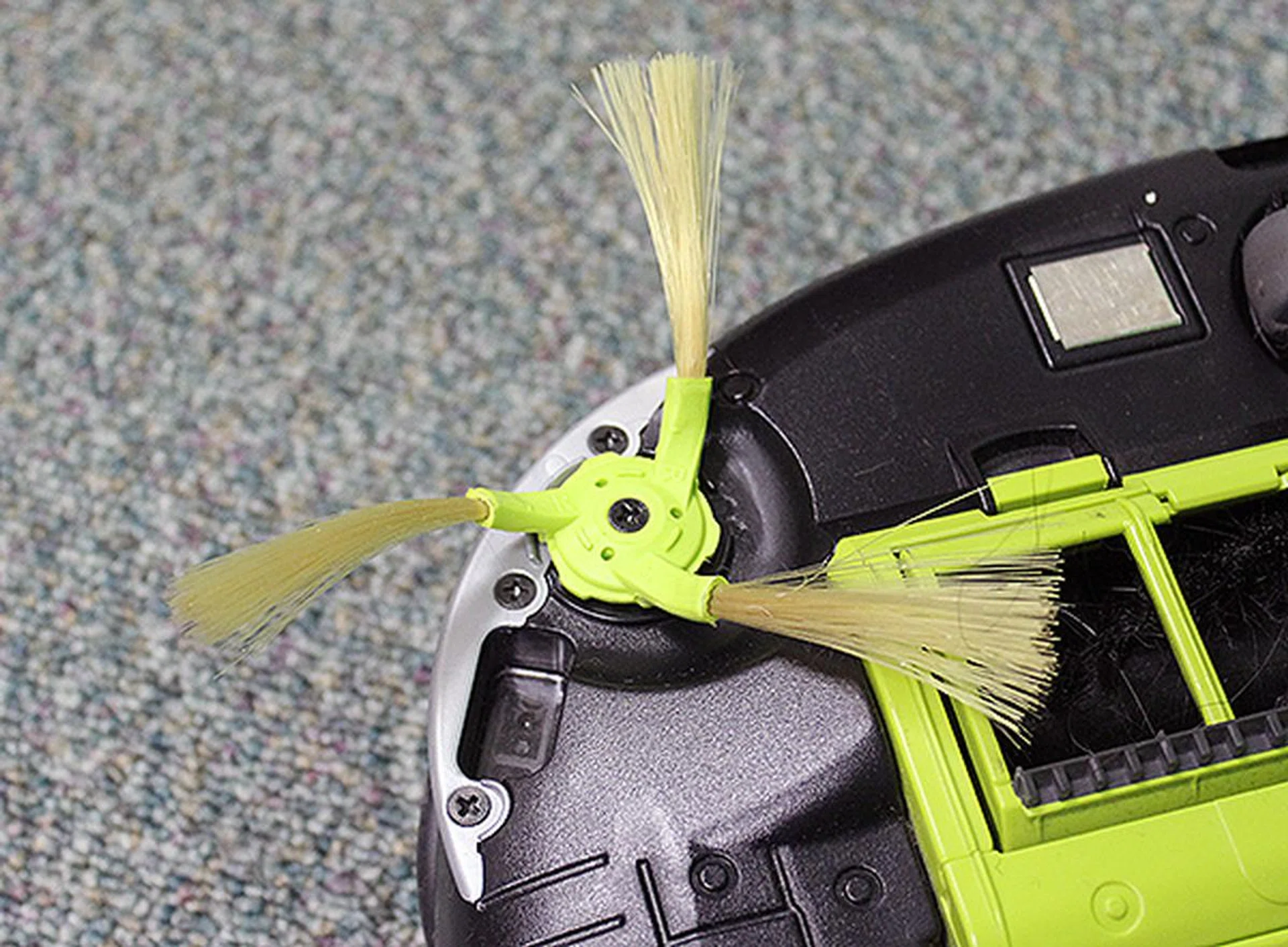

Coupled with its glossy candy red chassis, touch buttons and a display that is integrated into the top lid, the Hom-Bot Square certainly looks modern and stylish, but more than that, the squarish design is actually functional as it allows the device to better clean corners. Like other modern robo-cleaners, the Hom-Bot Square also features two sweeping brushes that help to catch dirt and dust so that it can be more easily sucked up by the device. In addition, these sweeping brushes have also been made longer by 1.5cm (compared to its predecessor) to better reach hard to access places.

That said, a new squarish design and longer sweeping brushes can only do that much, and what makes the LG Hom-Bot stand out from other robotic vacuum cleaners is its array of sensors and cameras that help it navigate around the tricky landscape that is our homes; as well as its ability to adapt, recognize and 'learn' areas for more effective and efficient cleaning.

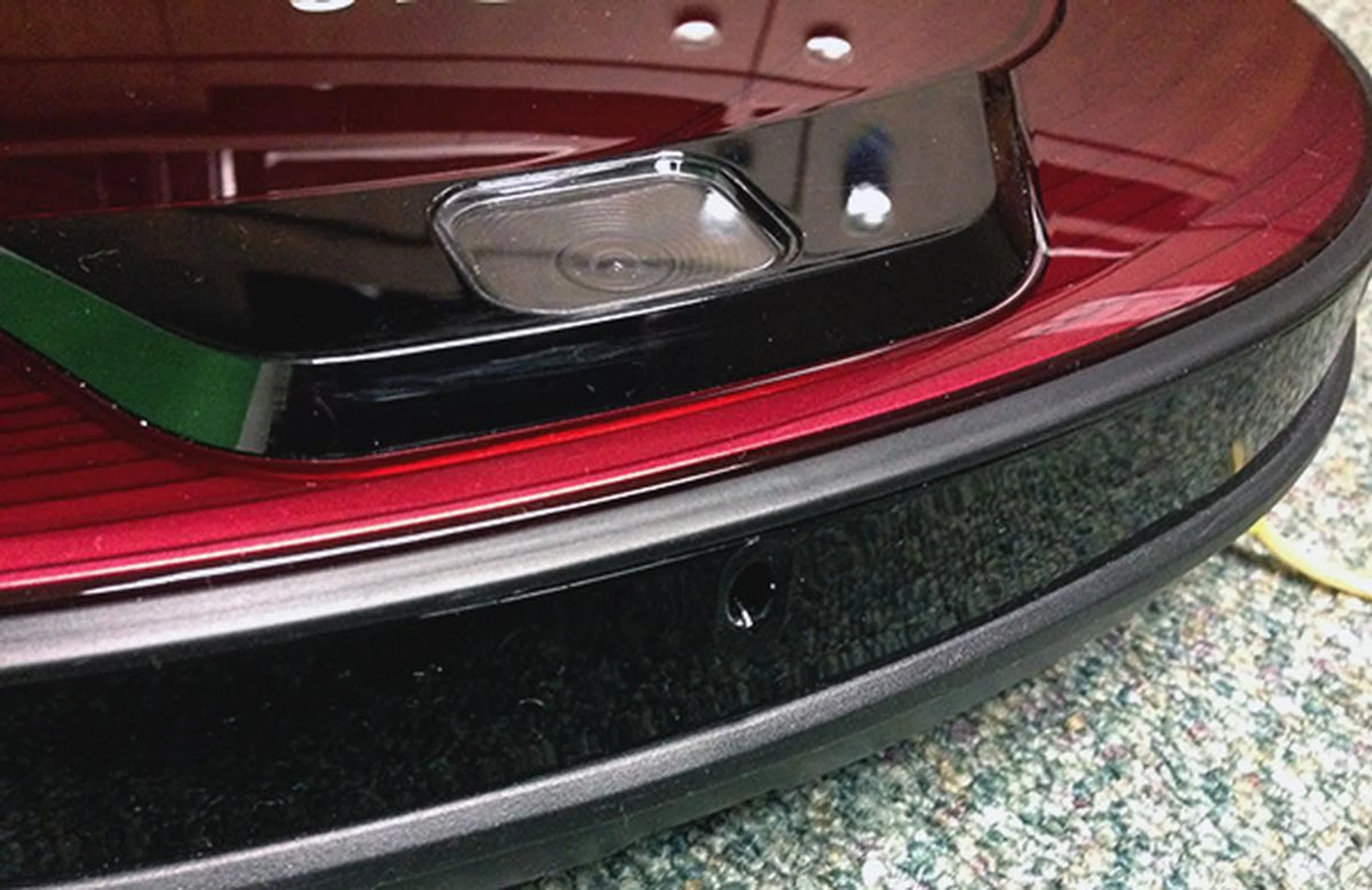

To begin, in order to recognize obstacles and prevent collisions, the Hom-Bot Square has three front-facing ultrasonic sensors. The sensors are positioned to give a wide angle and is sensitive enough to even recognize glass and transparent objects. Once it detects and senses an obstacle in its vicinity, it will automatically slow down and proceed more cautiously.

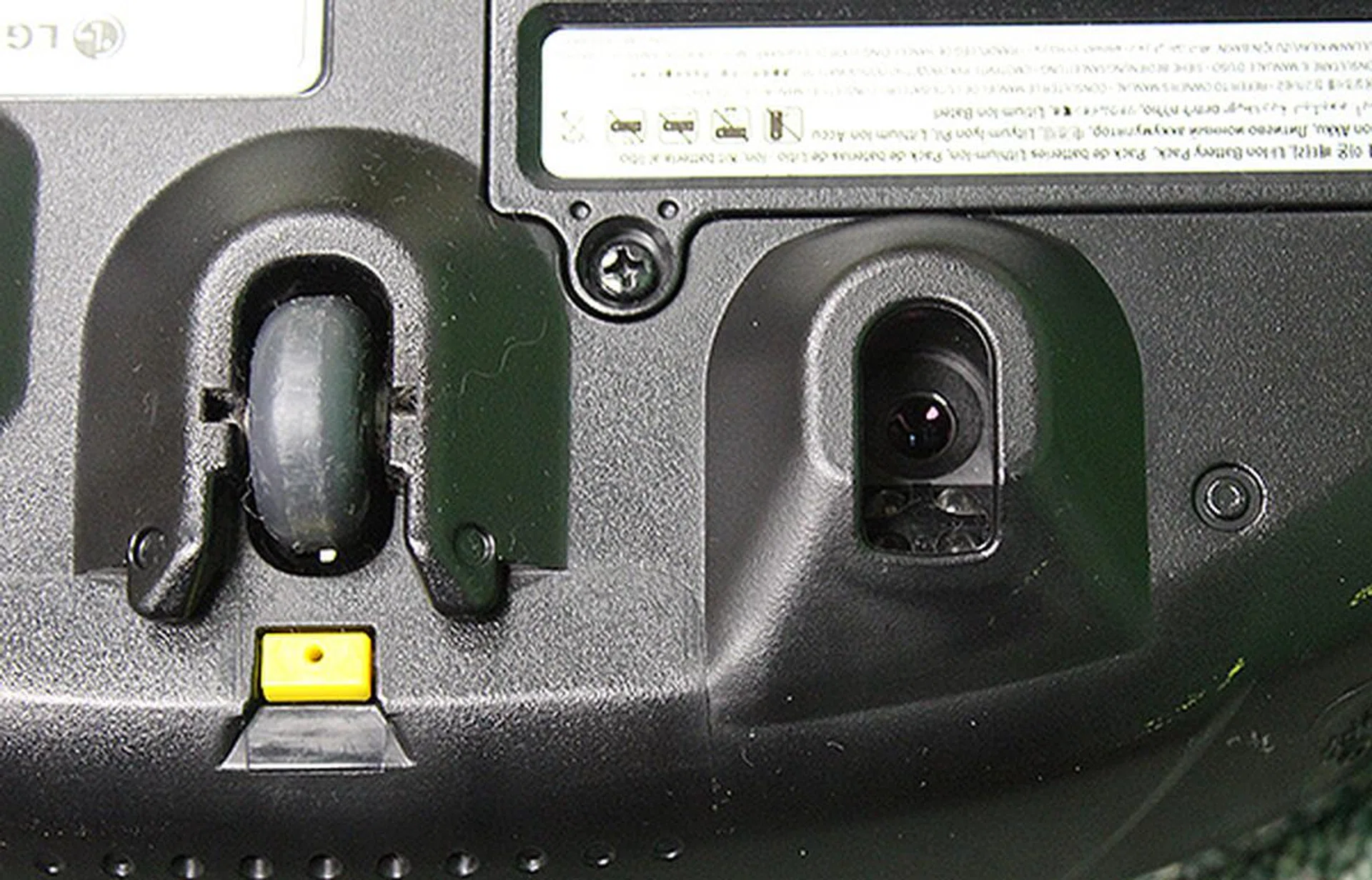

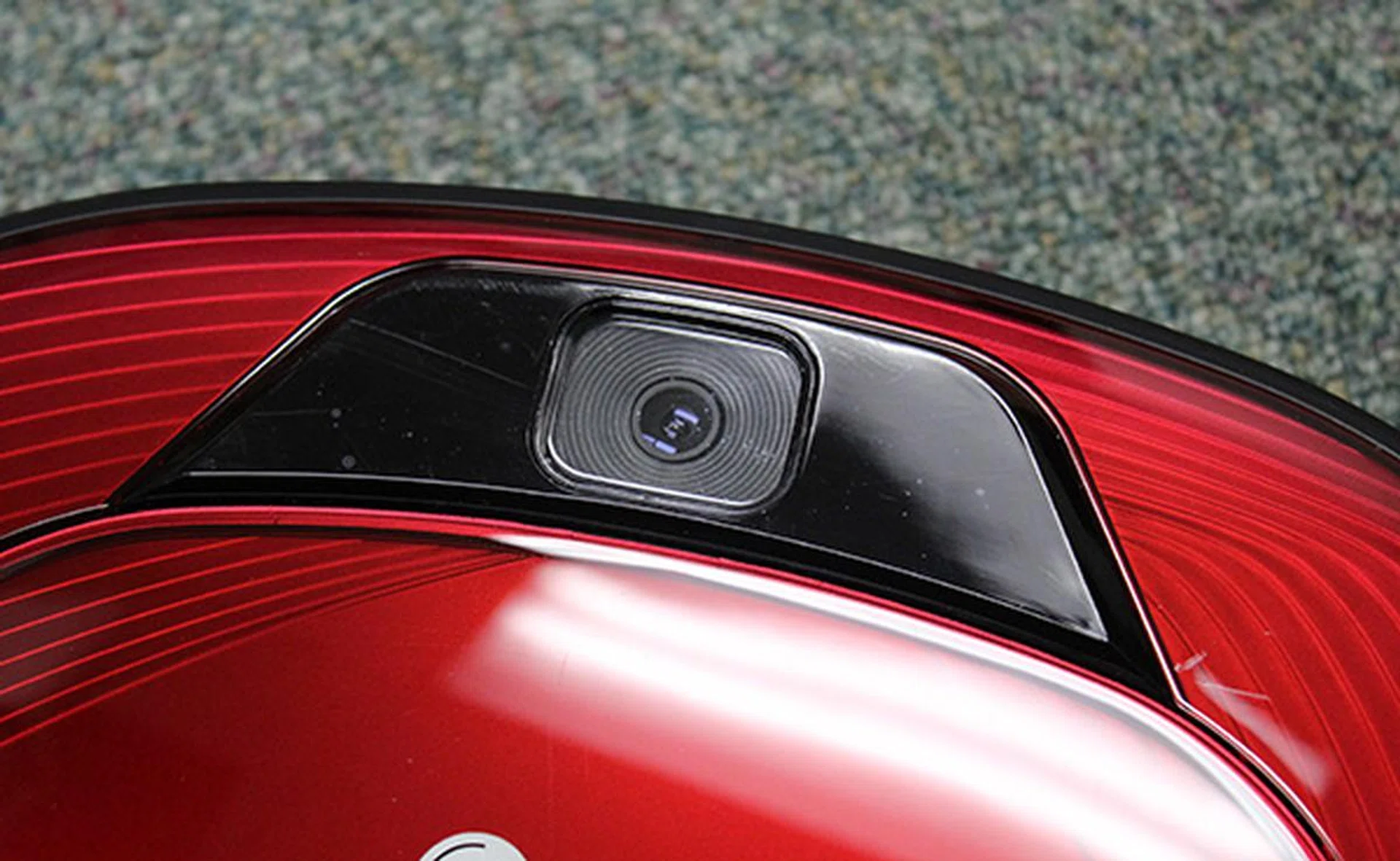

Secondly and perhaps more impressive are its top-mounted camera and bottom-mounted optical sensor. Together, they are referred to as Dual Eye 2.0 and it enables the device to recognize and map its surroundings so as to be able to memorize routes and clean more thoroughly and efficiently. According to LG, the top camera takes as many as 30 photos per second while the bottom optical sensor scans the surface up to 2000 times per second to map out its surroundings and pinpoint its position in a room. The bottom optical sensor also helps it to avoid falling off stairs or split levels. With the information gathered from the camera and optical sensor, the Hom-Bot Square then calculates up to 50 times a second to work out the most effective cleaning route.

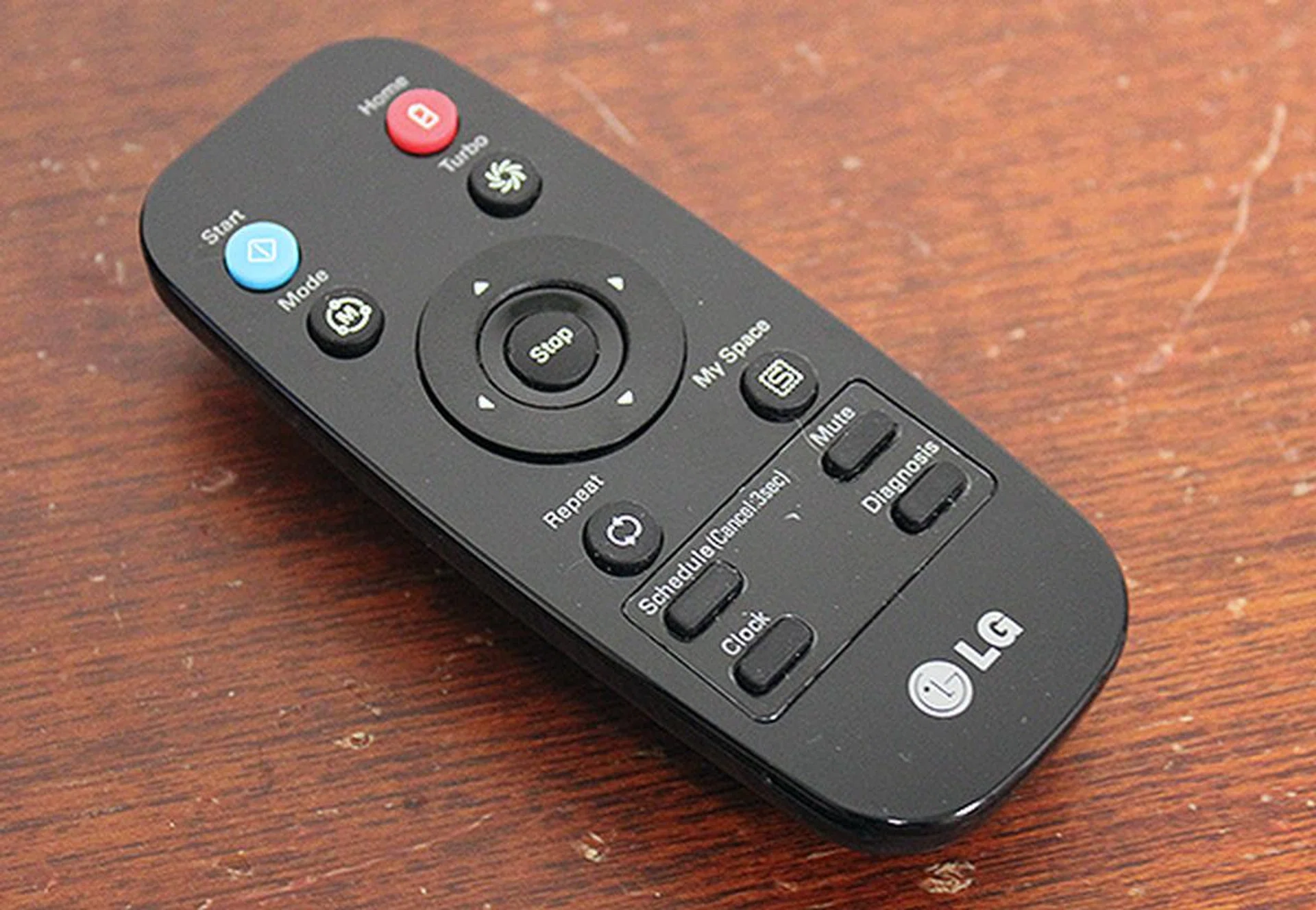

One can control the Hom-Bot Square either using the touch buttons on the lid of device itself or the provided remote controller. The remote controller also lets users manually control the Hom-Bot Square making it possible to navigate the device to areas that it might have missed.

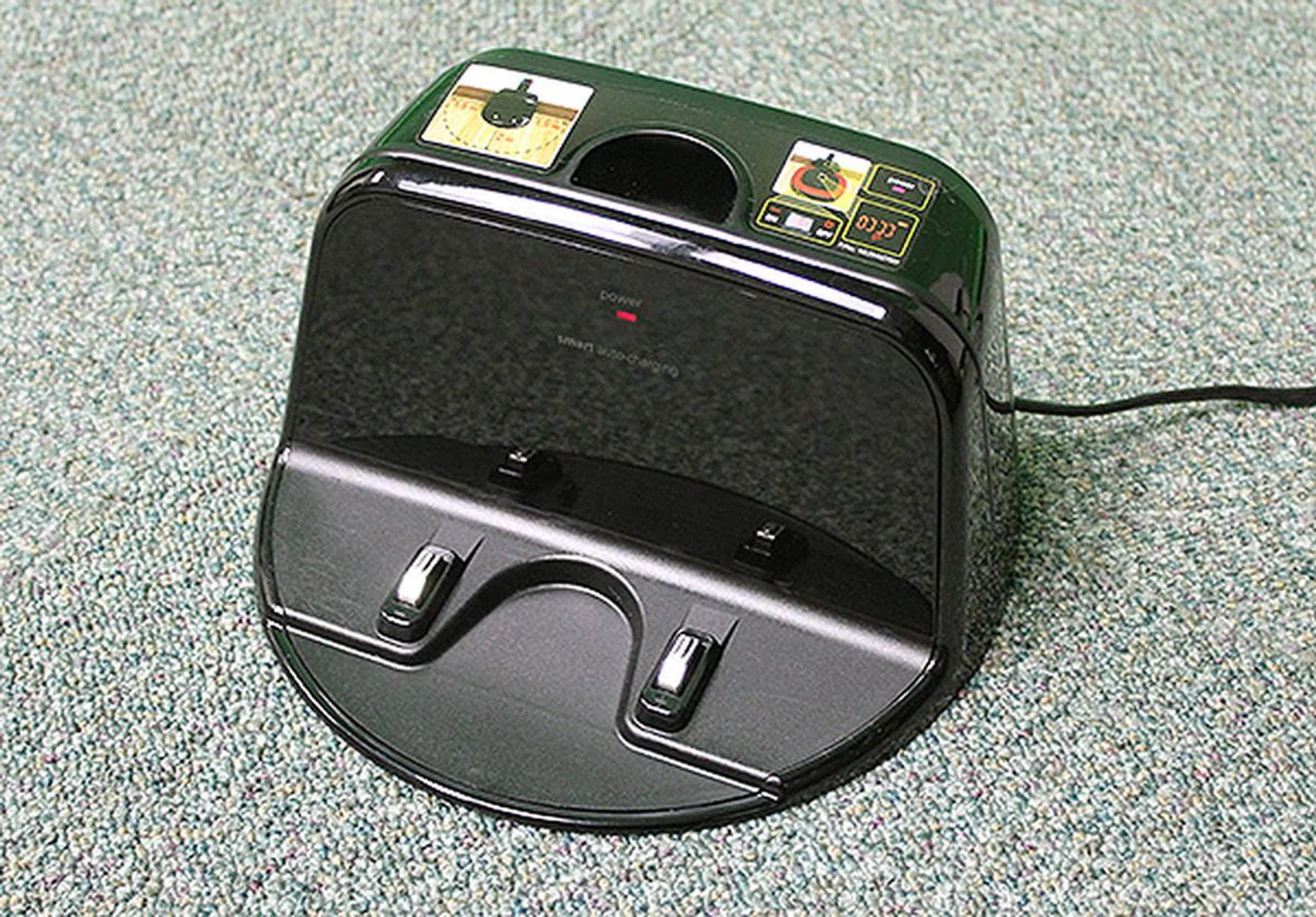

Finally, the Hom-Bot Square also comes with a charging station. We found that the device would last around 1.5 hours on a full charge and once it finds itself low on battery, it will automatically find its way back to the home station and then resume from where it stopped once it is fully charged. You can also send the device back to the charging station at any time you like using the touch buttons on its lid or the remote control.

Performance & Maintenance

Cleaning Modes

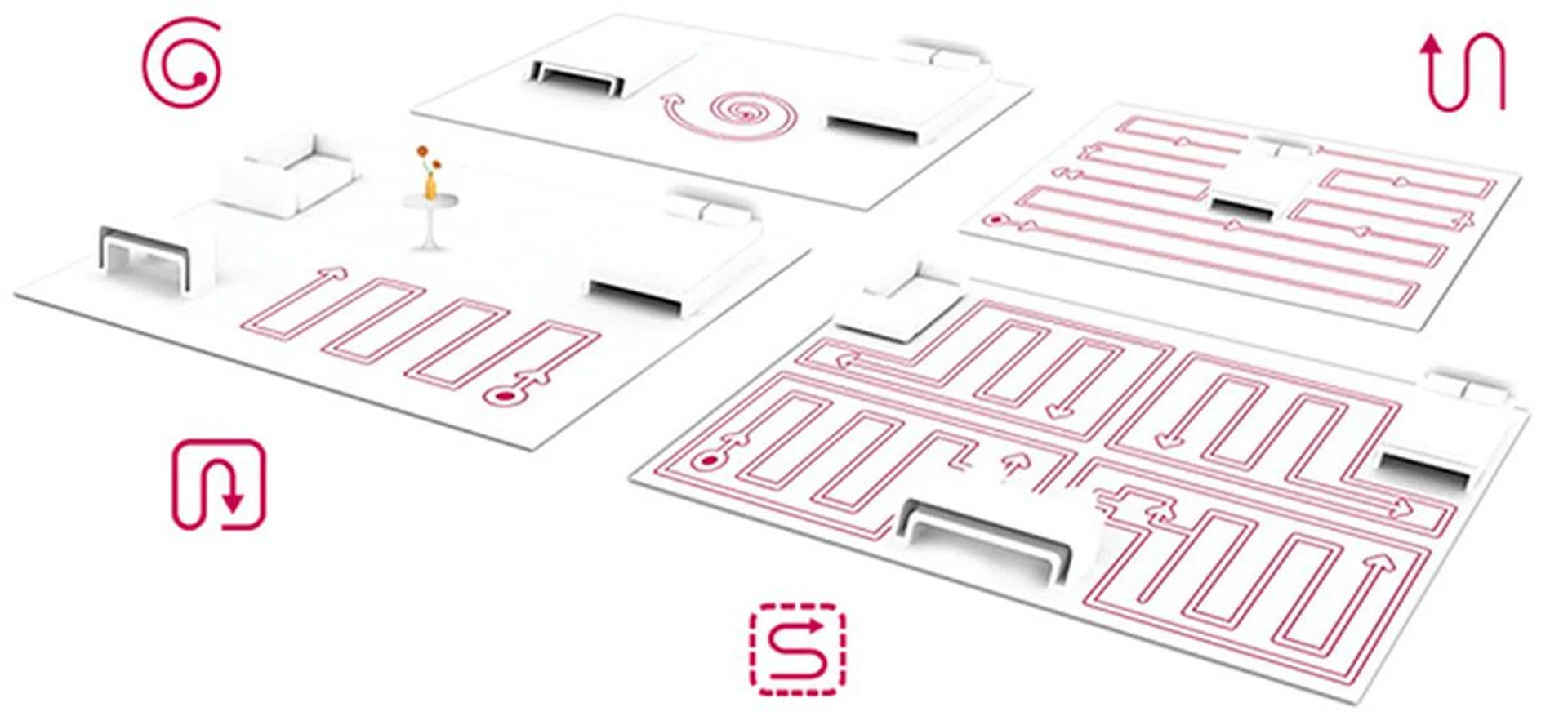

Recognizing that room and home layouts are limitlessly varied, the LG Hom-Bot Square offers four different cleaning modes: My Space, Spiral, Zig Zag and Cell by Cell.

As its name suggests, Spiral mode cleans in circles, beginning with a small one and then gradually moving outwards in bigger circles. In Zig Zag mode, the Hom-Bot Square moves back and forth in an orderly fashion, which is useful for large areas with little obstacles. An extension of Zig Zag mode is Cell by Cell mode, in which the Hom-Bot Square would divide the rooms into smaller blocks and then proceed to clean each block in Zig Zag mode before moving to the next. This mode is probably most suitable for most homes.

My Space is arguably the most useful. In this mode, users can specify the area to clean by directing the Hom-Bot Square to draw its boundaries. Once that is done, the Hom-Bot Square will proceed to clean the area twice with Zig Zag mode. We found this especially useful as we can direct the Hom-Bot Square to areas that require more cleaning and also keeps the Hom-Bot Square away from areas that might trouble or trip the Hom-Bot Square (more on this later). It would have been an invaluable function if My Space could save cleaning zone profiles that users can load, but alas, LG failed to incorporate this simple but vital convenience aspect. As such, you'll have to map out the space to be cleaned every time.

Complementing all of the above mentioned cleaning modes, it also has a Turbo function that increases the power of the vacuum cleaner, which is useful if an area is especially dirty. Turbo mode is also automatically activated if the Hom-Bot Square finds itself on carpets, which will require more suction to dislodge dust and dirt particles.

Finally, the Hom-Bot Square also features Scheduled Cleaning, which lets users set a time that the Hom-Bot should begin cleaning. This is useful especially if you want it to clean when you are outside or if you are going to be away from the house for holidays or extended periods of time.

Our Usage Experience and Performance

In our experience with the Hom-Bot Square, we felt that cleaning performance is definitely above average when compared to most robotic vacuum cleaners out in the market today. This can be attributed to its long sweeping brushes, its ability to navigate around obstacles and its pathfinding logic and algorithm. We also found that it had no problem picking up most of the dust and dirt in its path and that it remains fairly quiet during operation, being much less noisy and intrusive than standard vacuum cleaners.

The Hom-Bot Square’s pathfinding algorithm deserves special mention because unlike most robotic vacuum cleaners which just goes about cleaning in a random and haphazard fashion, the Hom-Bot Square tries to do it as logically as it can. It does not simply move in a single direction and then changes direction randomly when it approaches an obstacle like some other robotic vacuum cleaners do. Instead, it uses its front-facing ultrasonic sensors to try and clean as close and as much of the area around the obstacle as possible. As a result, we found that it cleans more thoroughly and precisely.

However, the LG Hom-Bot Square is far from perfect. While its pathfinding abilities are above average, it still suffers from some problems that make it less helpful than we would have liked. For example, while the longer sweeping brushes are good for picking dirt and dust in hard to reach places, we found that it is especially prone to getting tangled with wires. This is in partly due to the fact that the ultrasonic sensors are not sensitive enough to identify wires, and also because the Hom-Bot Square was programmed to clean as close to walls as possible. As a result, it often gets close to walls and power sockets and gets tangled up with wires found in that vicinity.

The long sweeping brushes would often get stuck in soft rugs too. This is because the Hom-Bot Square was designed to automatically mount and clean thick rugs and carpets; as a result, it will not avoid these softer, lighter material rugs. The workaround is to either remove these rugs prior to activating the Hom-Bot Square or to use the My Space mode to specify the cleaning area to avoid the rug altogether.

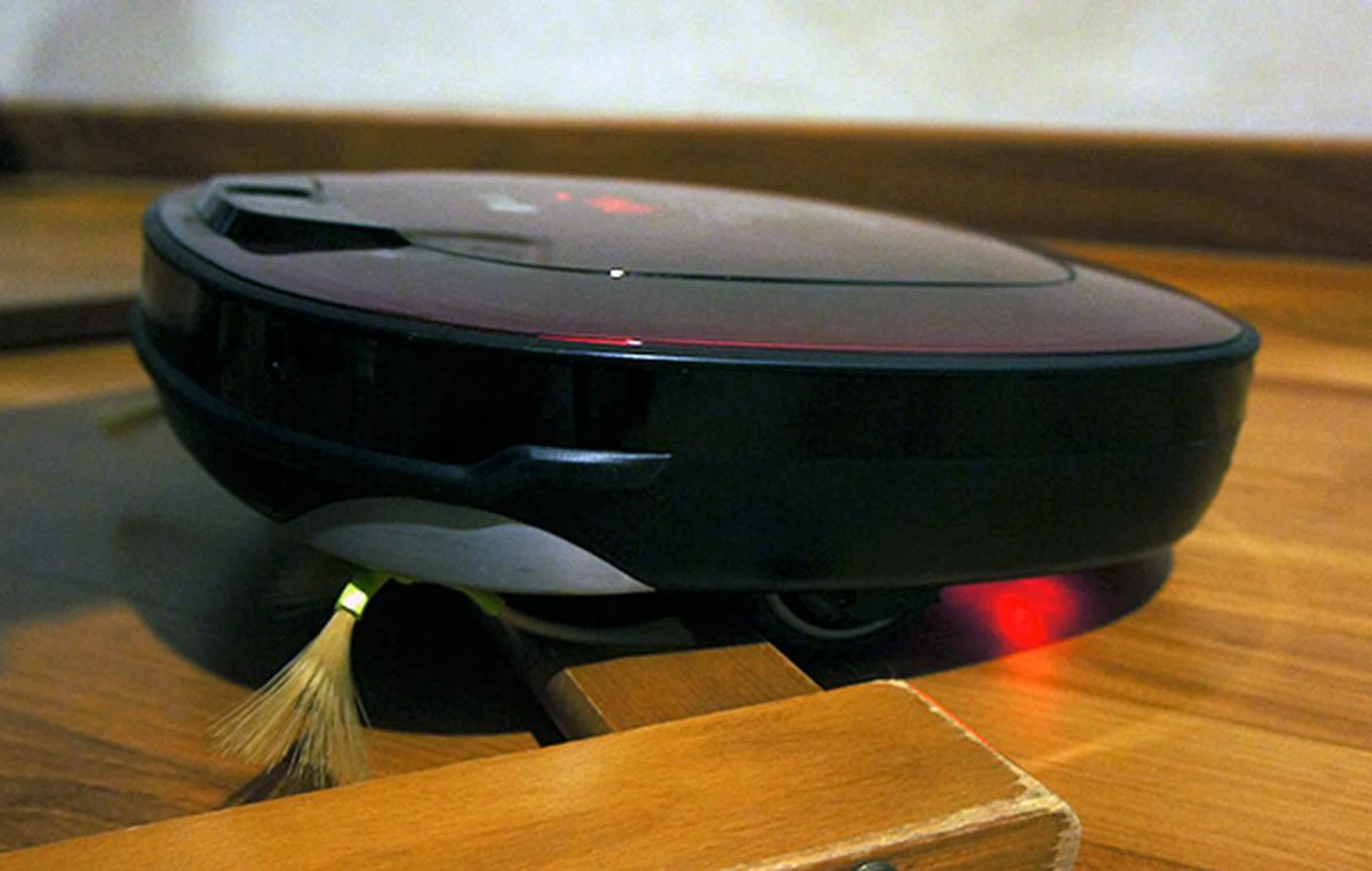

Also, as good as the Hom-Bot Square’s ultrasonic sensors are, there still objects that slip through its detection. It had difficulties avoiding a particular piece of furniture in the room that we used for testing, specifically Ikea’s POÄNG armchair, which has low-lying legs that run parallel to the floor. We found that the Hom-Bot Square will frequently go up the legs and get itself stuck as its wheels lose contact with the floor. Clearly, the legs lie too low for the Hom-Bot Square’s ultrasonic sensors to pick up. We also noticed that the front-facing ultrasonic sensors seem to suffer from blind spots, as it would sometimes bump into objects if they were at an angle.



Easy Maintenance

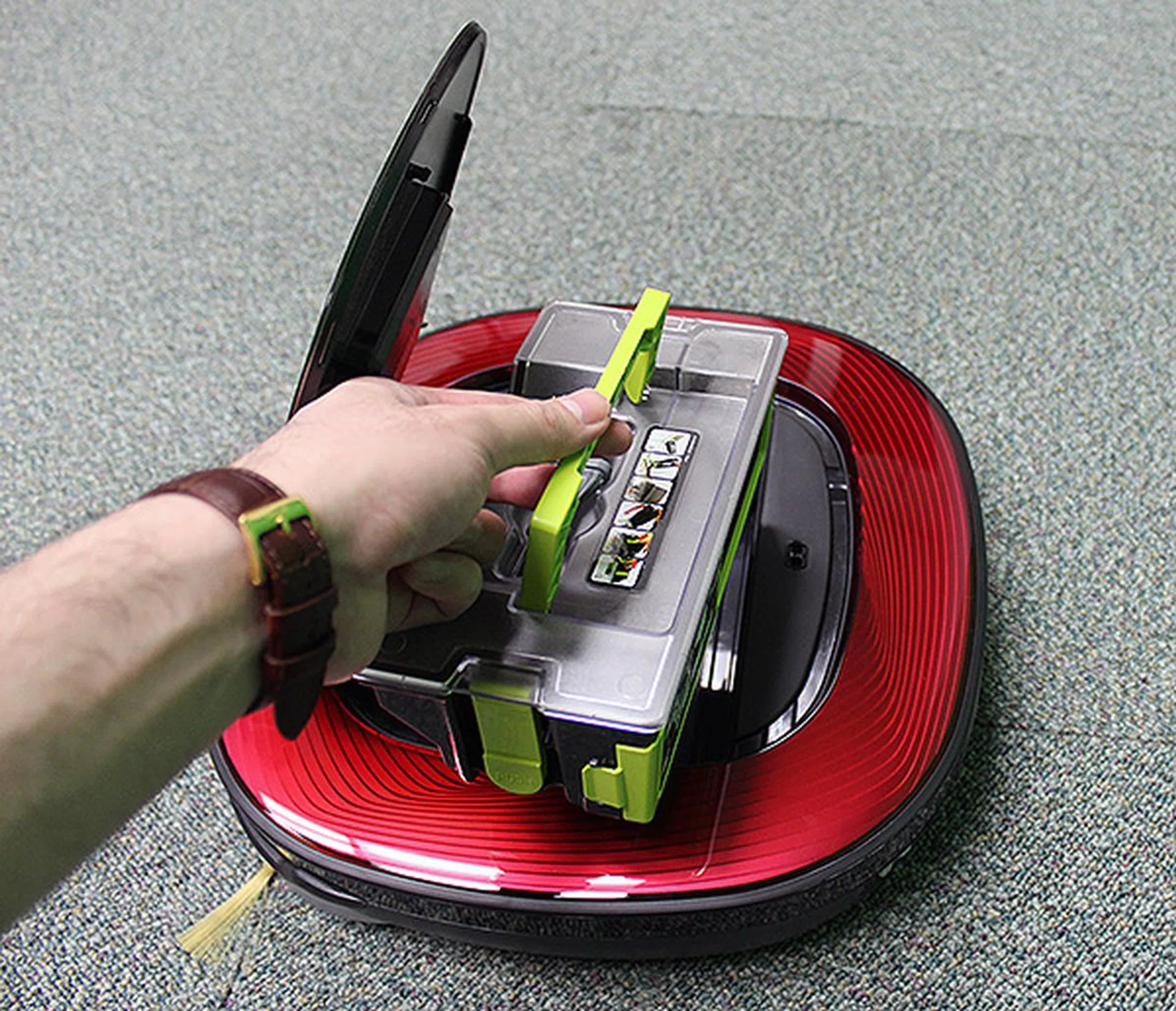

Maintenance and cleaning of the Hom-Bot Square is delightfully straightforward. Pressing on the top panel of the device releases the lid and exposes the HEPA dust bag, which can be easily emptied simply by pulling upwards and away from the device. It is a thoughtful touch considering many robotic vacuum cleaners have dust bags that need to be slid out or yanked out from the device, which in the process creates an unwanted cloud of dust and dirt. LG also provides a cleaning brush to clean the sweeping brushes and the dust roller on the underside of the device.

A Helpful but Expensive Little Helper

Having someone else, or in this case something else, to do the things that you do not like doing is invaluable. And generally speaking, the LG Hom-Bot Square is a decent performer in that it can help clean your room with minimal input and supervision - sometimes.

As advanced and as clever as it is with its ultrasonic sensors and dual cameras and optical sensor, it is no replacement for a human (not yet at least). As we have mentioned in the paragraph above, the key word is "minimal" and in our experience with the LG Hom-Bot, we found that it encounters problems with certain types of furniture, rugs and wires. Therefore, it would not be fair to say that the LG Hom-Bot Square is completely automatic as some preparatory work is needed. For users, this means either removing all potential obstacles, or using the device’s My Space mode to map out the area for cleaning. While this puts a dent on the whole idea of hands-free, fire-and-forget automatic cleaning, it is still a great deal better than having to get your hands dirty.

Unfortunately, such convenience comes at a high price as the LG Hom-Bot Square costs a very substantial S$1299, which makes it one of the most expensive robotic vacuum cleaners in the market today.

Is the premium justified? Well, yes and no, because while we were impressed with its variety of cleaning modes and its pathfinding logic, and also of the fact that its cleaning performance was noticeably better than the competition, we were frustrated that it seems to get tangled up in things quite easily if left to its own devices and that some types of furniture could trip it up and cause it to get stuck. Further frustrating us was the fact that the Hom-Bot isn't able to save mapped out areas to be cleaned using the My Space cleaning mode. Had it incorporated saved profiles for users to quickly launch, it would save time and hassle of mapping rooms and areas to be cleaned every time and there's less prep work required by the user to have the room bot-friendly for cleaning. So close and yet so far.

All things considered, the LG Hom-Bot Square is a helpful and useful device, but with its high price, it is only really appropriate for those who have deep pockets and have a really, really strong aversion to cleaning chores.

Take note that this generation of LG's Hom-Bot doesn't yet support LG's HomeChat feature that would allow you to send commands via Line's chat application. That function along with smartphone control via LG's Smart Control app is featured in the next generation LG Smart Hom-Bot Square. There haven't been any announcements on when it would be out in retail, but seeing that it was unveiled in CES 2014, we figure it would make it to the local retail channels in the second half of this year. Perhaps it has improved on some our misgivings from the current generation Hom-Bot Square? We'll find out when we get hold of its Smart counterpart for review in the future.
