Shuttle XPC SN27P2

14 Jun 2006
Overall rating 8/10

Tags: (none)


Product Specification

Processor and Chipset
  • Based on NVIDIA nForce 570 Ultra MCP
  • Supports AMD Socket AM2 (AMD Sempron/Athlon 64/FX/X2)
  • Supports unbuffered non-ECC DDR2-667 / DDR2-800 memory up to 8GB (4 DIMM slots)
Audio Realtek ALC882 HD Audio (7.1 channels)
I/O Ports
  • Front Panel
    • 1 x Mic-in
    • 1 x Headphone (Line-out)
    • 2 x USB 2.0
    • 1 x mini Firewire port (IEEE 1394)
  • Back Panel
    • External SATA port
    • 1 x FireWire port (IEEE 1394a)
    • 6 x USB 2.0 ports
    • 1 x Gigabit RJ-45 LAN port
    • 1 x Optical S/PDIF in
    • 1 x Optical S/PDIF out
    • 1 x Coaxial S/PDIF out
    • 8-channel audio out
    • CMOS Reset button
Dimensions Length: 325mm, Width: 210mm, Height: 220mm
Weight 4.25kg net / 6.05kg gross

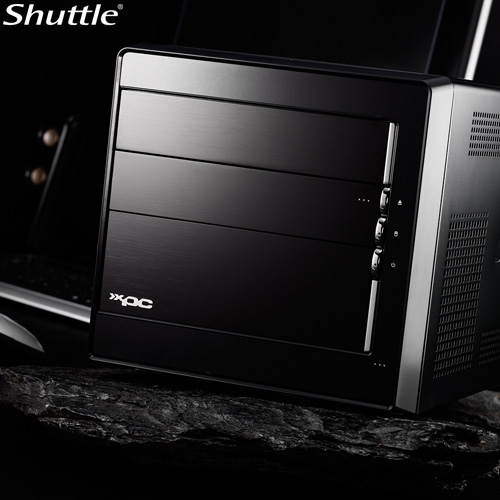

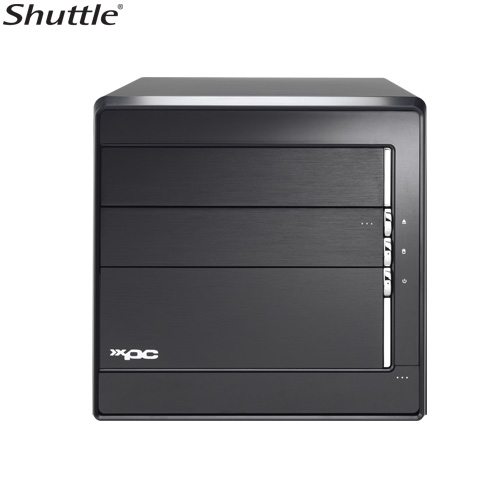

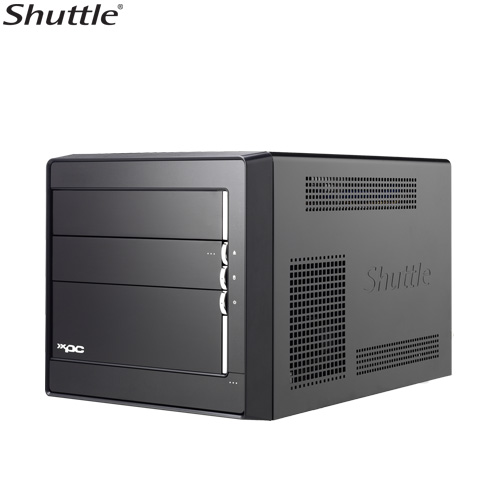

Photos of Shuttle XPC SN27P2
