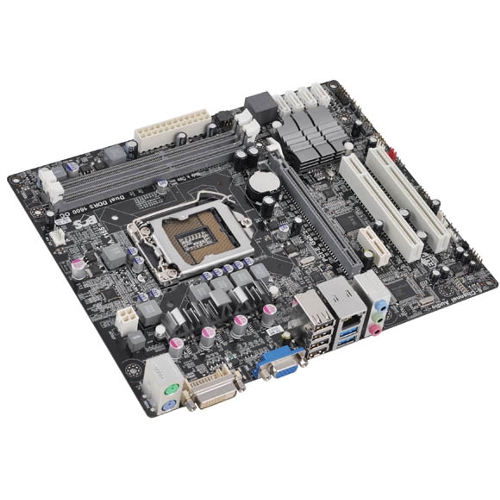

ECS H67H2-M3


Featuring Intel's H67 Express chipset with SATA 6Gbps and two extra USB 3.0 ports, the ECS H67H2-M3 comes with DVI display output that delivers smooth Blu-ray and HD video playback.

Tags: ecs, intel h67

Product Specification

Processor Support and Chipset Type
  • Supports LGA1155 socket for Intel Core i7 / i5 / i3, Intel Pentium processors, Intel Celeron processors
  • Supports Intel Turbo Boost 2.0 Technology
  • Intel H67 Express Chipset
Memory
  • Dual Channel DDR3 memory technology
  • 2 x 240-pin DDR3 DIMM slots
  • Supports DDR3 1333/1066 SDRAM
  • Max. capacity of system memory: 16GB
Storage
  • Support by Intel H67
  • 4 x Serial ATA 3Gbps devices
  • 2 x Serial ATA 6Gbps devices
Audio
  • Realtek ALC662 6-channel HD audio CODEC
Networking
  • Realtek 8111E Gigabit LAN Fast Ethernet Controller
  • Realtek 8105E 10/100 Lan(Optional)
Rear I/O
  • 2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices (blue)
  • 4 x USB 2.0 Ports
  • 1 x D-sub(VGA)
  • 1 x DVI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (Line-in,4x Line-out, SPDIF out)
  • 1 x PS/2 keyboard & PS/2 mouse connectors
Internal Connectors
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin power connector for VGA card
  • 1 x 4pin CPU_FAN connectors
  • 1 x 3-pin SYS_FAN connector
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 4 x SATA 3Gbps connectors
  • 2 x SATA 6Gbps connectors
  • 1 x COM header
  • 1 x Case Open header
  • 1 x SPDIF out header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • 1 x Speaker header
  • 1 x Clear CMOS header
Expansion Slots
  • 1 x PCI Express x16 Gen2.0 slot
  • 1 x PCI Express x1 slot
  • 2 x PCI slots
Form Factor microATX Form Factor, 24.4 x 24.4cm
