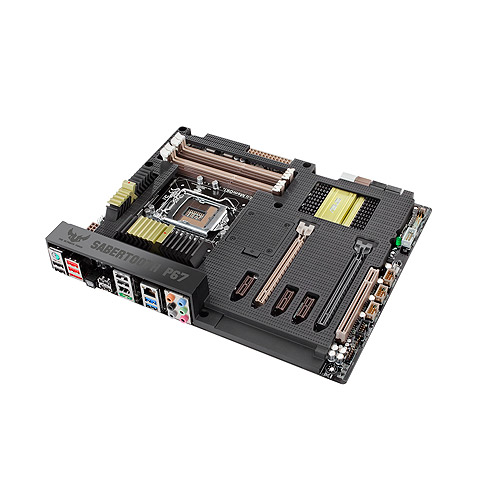

ASUS SABERTOOTH P67


With TUF Thermal Radar for real time temp detection and heat removal and TUF components certified for tough duty, the SABERTOOTH P67 is an Intel P67 based military-grade motherboard with thermal armor.

Tags: asus, intel p67

Product Specification

Processor Support and Chipset Type
  • Supports Intel Socket 1155 for Intel Core i7 / i5 / i3 Processor
  • Supports Intel 32nm CPU
  • Supports Intel Turbo Boost Technology 2.0
  • Intel P67(B3) Express Chipset
Memory
  • Dual Channel DDR3 memory technology
  • 4 x DDR3 DIMM slots
  • Supports DDR3 1866/1800/1600/1333/1066 Non-ECC, Un-buffered Memory
  • Supports Intel Extreme Memory Profile (XMP)
  • Max. capacity of system memory: 32GB
Storage
  • Intel P67(B3) Express Chipset: 2 x SATA 6.0 Gbps ports (brown), 4 x SATA 3Gbps ports (black)
  • Intel Rapid Storage Technology Support RAID 0,1,5,10
  • Marvell PCIe SATA 6Gbps controller: 2 x SATA 6Gbps ports (gray)
  • JMicron JMB362 SATA controller: 1 x Power eSATA 3Gbps port (green), 1 x External SATA 3Gbps port (red)
Audio Realtek ALC892 8-Channel High Definition Audio CODEC
Video
  • Supports NVIDIA Quad-GPU SLI Technology
  • Supports ATI Quad-GPU CrossFireX Technology
Networking Intel 82579 Gigabit LAN (Dual interconnect between the Integrated LAN controller and Physical Layer (PHY))
FireWire (IEEE 1394) VIA VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
Rear I/O
  • 1 x PS/2 Keyboard/Mouse Combo port
  • 1 x External SATA 3Gbps port (red)
  • 1 x Power eSATA 3Gbps port (green)
  • 1 x IEEE 1394a
  • 1 x LAN(RJ45) port(s)
  • 2 x USB 3.0/2.0 ports (blue)
  • 8 x USB 2.0/1.1 ports
  • 1 x S/PDIF Out (Optical)
  • 8 -Channel Audio I/O
Internal Connectors
  • 1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin; moss green)
  • 3 x USB 2.0/1.1 connector(s) support additional 6 USB ports
  • 1 x MemOK! button
  • 4 x SATA 6.0Gbps connectors ( 2 x gray; 2 x brown)
  • 4 x SATA 3.0Gbps (black)
  • 1 x IEEE 1394a connector
  • 1 x CPU Fan connector(s) (4-pin)
  • 2 x Chassis Fan connector(s) (1 x 4-pin; 1 x 3-pin)
  • 1 x Power Fan connector(s) (3-pin)
  • 1 x Assistant Fan connector (3-pin)
  • 1 x S/PDIF Out connector
  • 24-pin EATX Power connector
  • 8-pin EATX 12V Power connector
  • 1 x Front panel audio connector
  • 1 x COM connector
  • 1 x System Panel (Q-Connector)
  • 1 x Clear CMOS jumper
Expansion Slots
  • 2 x PCI Express 2.0 x16 (single at x16 or dual at x8/x8 mode)
  • 3 x PCI Express 2.0 x1
  • 1 x PCI
Other Features
  • Exclusive TUF Features
  • "Ultimate COOL!" Thermal Solution
  • TUF Thermal Armor
  • TUF Thermal Radar
  • "TUF ENGINE!" Power Design
  • 8+2 Digital Phase Power Design
  • TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
  • ASUS DIGI+ VRM Utility
  • E.S.P. : Efficient Switching Power Design
  • "Safe & Stable!" Guardian Angel
  • ESD Guards
  • MemOK!
  • Anti Surge
  • Other Special Features:
  • Front Panel USB 3.0 Support
  • ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
  • AI Suite II
  • ASUS Q-Connector
  • ASUS Q-Shield
  • ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • ASUS Q-Slot
  • ASUS Q-DIMM
  • ASUS O.C. Profile
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 2
  • ASUS MyLogo 2
  • Multi-language BIOS
Form Factor ATX Form Factor, 30.5 x 24.4cm
