ASUS M4A88TD-V EVO/USB3

16 Apr 2010
Overall rating 9/10

The ASUS M4A88TD-V EVO/USB3 uses AMD's 880G chipset with Southbridge 850 and has USB 3.0 support. It has integrated graphics with built-in SidePort memory and also supports CrossFireX. ASUS technologies like MemOK! and Core Unlocker are also present.

Tags: asus, amd 880g

Performance:
9
Features:
9
Value:
8
THE GOOD
Integrated graphics performance is above average
Good layout
Strong set of proprietary features
THE BAD
Premium price compared to rivals

Product Specification

Processor Support and Chipset Type
  • AMD Socket AM3 Processors (Phenom II / Athlon II / Sempron)
  • AMD 880G and SB850
Memory
  • Supports 4 unbuffered DIMM of DDR3-2000 (O.C)/1333/1066/800 SDRAM
  • Supports up to 16GB memory size
Storage
  • SB850 Chipset
  • 5 xSATA 6.0 Gb/s ports Support RAID 0,1,5,10,JBOD
  • 1 xeSATA port (6Gb/s ready)
  • VT6330 controller
  • 1 x Ultra DMA 133/100/66 for up to 2 PATA devices
Audio Realtek ALC889 HD CODEC
Video
  • Integrated ATI Radeon HD 4250
  • Maximum shared memory of 1GB
  • SidePort Memory - onboard 128MB DDR3 1333 memory
Networking Realtek 8111E Gigabit LAN controller
FireWire (IEEE 1394) VIA VT6330 controller supports 2 x 1394a port(s) (1 at mid-board; 1 at back panel)

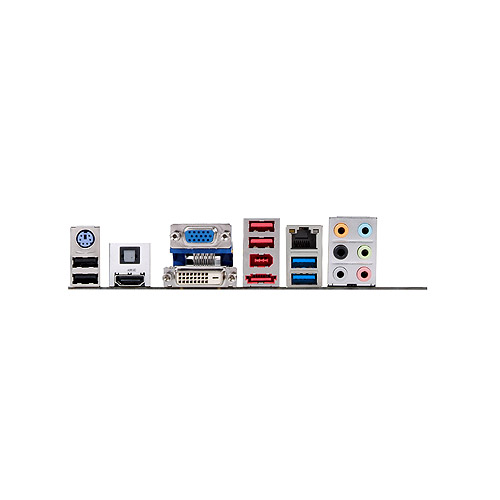

Rear I/O
  • 1 x PS/2 Keyboard/Mouse Combo port
  • 1 x DVI-D port
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x optical S/PDIF output
  • 1 x IEEE 1394a port
  • 1 x LAN(RJ45) port
  • 6 x USB 2.0/1.1 ports
  • 6 audio jacks
  • 1 x eSATA port
Internal Connectors
  • 1 x Core Unlocker switch
  • 1 x Turbo Key II switch
  • 1 x MemOK! Button
  • 4 x USB 2.0 connectors (8 ports)
  • 1 x COM connector
  • 1 x IDE connector
  • 5 x SATA 6Gbit/s connectors
  • 3 x fan headers
  • 1 x IEEE 1394a connector
  • 1 x S/PDIF Out header
  • 24-pin ATX Power connector
  • 8-pin ATX 12V Power connector
Expansion Slots
  • 2 x PCIe 2.0 x16 (blue @ x16 mode, gray @ x4 mode) slots
  • 1 x PCIe 2.0 x1 slots
  • 3 x PCI slots
Other Features
  • TurboV EVO
  • Turbo Unlocker
  • Turbo Key II
  • Core Unlocker
  • MemOK!
  • ASUS EZ Flash 2
  • ASUS CrashFree BIOS 3
Form Factor ATX Form Factor, 30.5cm x 24.4cm

Photos of ASUS M4A88TD-V EVO/USB3
