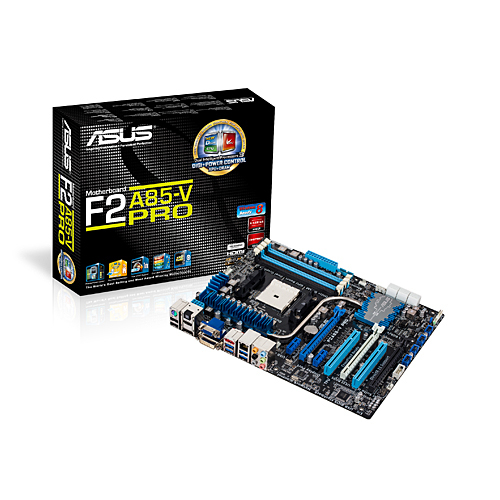

ASUS F2A85-V PRO


The F2A85-V PRO comes with ASUS-exclusive features including Dual Intelligent Processors 3 with new DIGI+ Power Controls to save up to 65% in system energy, GPU Boost to enhance integrated graphics up to 17%, and USB BIOS Flashback tool and Remote GO! to complement the multimedia experience.

Product Specification

Processor Support and Chipset Type
  • Supports AMD Socket FM2 Athlon/A- Series Processors
  • Supports AMD Turbo Core 3.0 Technology
  • AMD A85X FCH(Hudson D4) Chipset
Memory
  • Dual Channel DDR3 memory technology
  • 4 x DIMM slots
  • Supports DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz
  • Supports AMD Memory Profile (AMP) memory
  • Max capacity of system memory: 64GB
Storage
  • AMD A85X FCH(Hudson D4) chipset :
  • 7 x SATA 6Gb/s port(s), gray
  • 1 x eSATA 6Gb/s port(s), red
  • Support Raid 0, 1, 5, 10, JBOD
Audio Realtek ALC892 8-Channel High Definition Audio CODEC
Networking Realtek 8111F, 1 x Gigabit LAN Controller(s)
Rear I/O
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x eSATA
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0 (blue)
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
Internal Connectors
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 7 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 x -pin)
  • 4 x Chassis Fan connector(s) (4 x -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x EPU switch(es)
  • 1 x USB BIOS Flashback button(s)
Expansion Slots
  • 2 x PCIe 2.0 x16 (x16 or dual x8)
  • 1 x PCIe 2.0 x16 (x4 mode)
  • 2 x PCIe 2.0 x1
  • 2 x PCI
Form Factor ATX Form Factor, 30.5 x 24.4cm
