ASUS F1A75-V PRO

22 Jun 2011

The ASUS F1A75-V PRO supports AMD A-series and E2-series of APU in the FM1 package. It is based on the AMD A75 chipset with native support for 6Gbps and USB 3.0. AMD Dual Graphics technology allows users to pair the integrated AMD Radeon graphics on the APU with a suitable discrete AMD graphics card.

Tags: asus, llano, amd a75

Product Specification

Processor Support and Chipset Type
  • AMD A-series and E2-series APU in the FM1 package
  • Supports AMD Turbo Core 2.0 technology
  • AMD A75 FCH
Memory
  • Dual-channel memory architecture
  • 4 x 240-pin DIMM slots support maximum 64GB of unbuffered non-ECC DDR3 1866/1600/1333/1066MHz memory modules
Storage
  • AMD A75:
  • 6 x SATA 6Gbps connectors support RAID 0, 1, 10 and JBOD configurations
  • Asmedia PCIe SATA 6Gbps controller
  • 1 x SATA 6Gbps connector
  • 1 x eSATA 6Gbps connector at rear
Audio ALC892 HD audio CODEC
Video
  • AMD Dual Graphics technology
  • ATI CrossFireX support
Networking Realtek RTL8111E PCIe Gigabit LAN controller

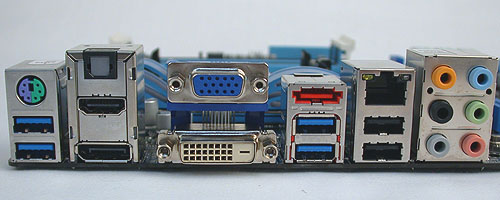

Rear I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x DVI port
  • 1 x D-Sub port
  • 1 x optical S/PDIF output
  • 1 x LAN port
  • 1 x eSATA port
  • 2 x USB 2.0 ports
  • 4 x USB 3.0 ports
  • 8-channel audio ports
Internal Connectors
  • 1 x 19-pin USB connector supports additional 2 USB 2.0 ports
  • 4 x USB 2.0 connectors support additional 8 USB 2.0 ports
  • 1 x S/PDIF connector
  • 1 x High-definition front panel audio connector
  • 7 x SATA 6Gbps connectors
  • 1 x COM connector
  • 1 x EPU switch
  • 1 x TPU switch
  • 1 x MemOK! button
  • 1 x 20-pin system panel connector
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin chassis fan connectors
  • 1 x 3-pin power fan connector
  • 1 x 24-pin EATX power connector
  • 1 x 8-pin EATX 12V power connector
Expansion Slots
  • 2 x PCIe 2.0 x16 slots (single @ x16 or dual @ x16/x4)
  • 2 x PCIe 2.0 x1 slots
  • 3 x PCI slots
Form Factor ATX Form Factor, 30.5 cm x 24.4cm

Photos of ASUS F1A75-V PRO
